Name: Corundum Mullite Honeycomb Ceramic Regenerator for Industrial Furnaces
Brand: Zhengzhou Annec Industrial Co., Ltd.
SKU: Customized shape
Price: 1.00 USD
Availability: InStock

Home > products > Mullite Insulation Brick >

Corundum Mullite Honeycomb Ceramic Regenerator for Industrial Furnaces

corundum mullite honeycomb regenerator

industrial furnace ceramic regenerator

mullite insulation brick for furnaces

Place of Origin:

CHINA

Brand Name:

ANNEC

Certification:

ISO

Model Number:

Customized shape

Request A Quote

Corundum Mullite Honeycomb Ceramic Regenerator for Industrial Furnaces

Product Details

Highlight:

corundum mullite honeycomb regenerator

industrial furnace ceramic regenerator

mullite insulation brick for furnaces

Payment & Shipping Terms

Minimum Order Quantity

100

Price

1-2 usd

Packaging Details

Pallet with seaworthy package

Supply Ability

500 tons/month

RELATED PRODUCTS

86-0371-69938888

Contact Now

Product Description

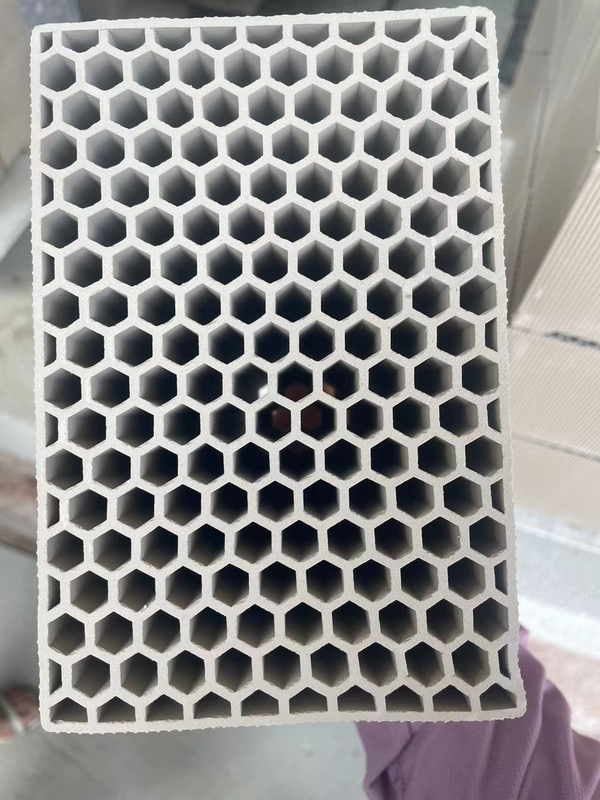

Honeycomb ceramic regenerators enhance efficiency, save energy, increase output and improve quality, an important and effective measure when dealing with energy and the environment. They’re applied on thermal equipment for energy saving within industry. The pores of the Honeycomb ceramic regenerators are square and hexagonal, and the channels of pores are straight and parallel to each other. This structure reduces the resistance of passing air and enhances the heat exchange efficiency of every channel.

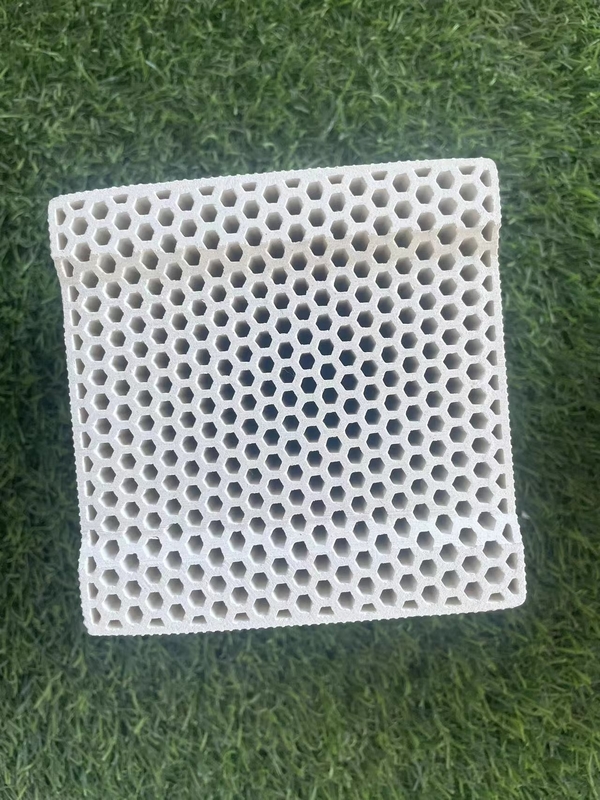

Corundum Mullite Honeycomb Ceramic Regenerator for Industrial Furnaces 0

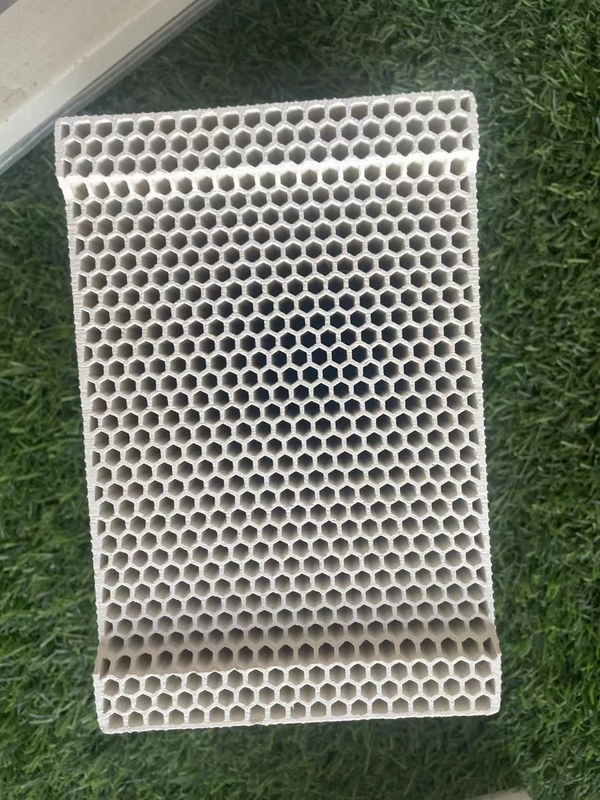

Corundum Mullite Honeycomb Ceramic Regenerator for Industrial Furnaces 1

Application of Honeycomb Ceramic Regenerator

The characteristics of the honeycomb ceramic regenerator are as follow: they have low heat expansion, high specific heat capacity, high specific surface area, low pressure drop, low thermal resistance, good thermal conductivity, thermal shock resistant and much more. So, in metallurgy and chemical industries, it’s used as HTAC, while we combine recycling the heat of the emissions, high efficient combustion with reducing NOx. It becomes a true energy saver and decreases Nox.

Product Name	Corundum Mullite Regenerator Honeycomb Ceramic
Color	white
Quantity of hole	25×25, 32×32, 40×40, 43×43,50×50,60×60
Work Temperature	1700℃
Material	Corundum mullite
Application	Steel plant, waste incinerator, waste gas treatment thermal equipment, chemical plant, metallurgical plant, power industrial boiler, gas turbine, engineering heating equipment, ethylene cracking furnace, etc.
Service	OEM/ODM
Sample	Free provided
Package	1.Pallet+Plastic or Steel belt +Plastic film (1)Wooden pallet size: 0.93*0.93m(standard brick) (2)Load weight of each pallet:Usually 1.5-1.7Tons, but 2.0 Tons at most. (3)20 Foot Container can be loaded 25-26Tons at most,about 13-16Pallets. 2.It’s available to package according to customer’s requirements.

Available Standard Sizes of Honeycomb Ceramic Regenerator

Size (mm)	Quantity of channels	Wall thickness	Channel Width	Surface area	Void section	Packaging density	Weight per piece
150×150×300	25×25	1.0mm	4.96mm	580m2/m3	68%	696kg/m3	4.7kg
150×150×300	40×40	0.7mm	3.03mm	891m2/m3	65%	814kg/m3	5.5kg
150×150×300	50×50	0.6mm	2.39mm	1090m2/m3	63%	903kg/m3	6.1kg
150×150×300	60×60	0.5mm	1.99mm	1303m2/m3	63%	932kg/m3	6.3kg
150x100x100	40×40	1mm	2.5mm	784m2/m3	49%	799kg/m3	1.2kg
150x100x100	33×33	1.1mm	3.0mm	691m2/m3	52%	750kg/m3	1.13kg
150x100x100	20×20	2.0mm	5.0mm	392m2/m3	49%	692kg/m3	1.04kg
100x100x100	40×40	1.0mm	2.5mm	784m2/m3	49%	810kg/m3	0.81kg
100x100x100	33×33	1.1mm	3.0mm	691m2/m3	52%	750kg/m3	0.75kg
100x100x100	20×20	2.0mm	5.0mm	392m2/m3	49%	680kg/m3	0.68kg

More Index of Honeycomb Ceramic Regenerator

Material	Loose Cordierite	Dense Cordierite	Cordierite Mullite	Mullite	Corundum Mullite
Al2O3, %	33-35	35-37	33-35	59-61	69-72
SiO2, %	48-50	48-50	48-51	37-39	28-30
Thermal Expansion (Room Temp.-1000%)×10-6/℃	1.5-1.8	2-2.5	2.0-3.0	4.2-5.0	4.5-5.2
Thermal Capacity(Room Temp.-1000℃), J/kg	750-900	800-1200	1100-1300	1100-1300	1300-1400
Heat Shock Resistance ℃	300	250	300	230	260
Softening Temperature℃	1280	1350	1400	1630	1680
Refractoriness ℃	1360	1410	1480	1750	1790
Max Service Temperature	1200	1300	1350	＞1550	＞1600
