Ultra Lightweight Alumina Bubble Brick For Furnace Insulation Layer

Ultra Lightweight Alumina Bubble Brick For Furnace Insulation Layer

Ultra Lightweight Alumina Bubble Brick

Alumina Bubble Brick For Furnace

Place of Origin:

CHINA

Brand Name:

ANNEC

Certification:

ISO

Model Number:

customized shape

Contact Us
Request A Quote
Product Details
Highlight:

Ultra Lightweight Alumina Bubble Brick

,

Alumina Bubble Brick For Furnace

Payment & Shipping Terms
Minimum Order Quantity
100 pcs
Price
0.8-1.2 usd
Packaging Details
Pallet with seaworthy package
Delivery Time
15
Supply Ability
500 tons/month
RELATED PRODUCTS
Contact Us
86-0371-69938888
Contact Now
Product Description

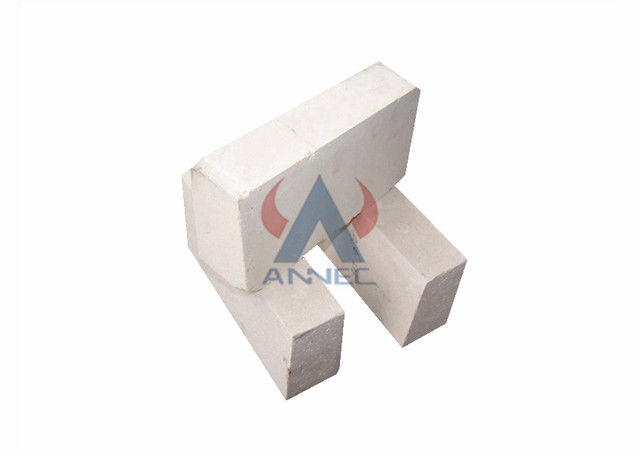

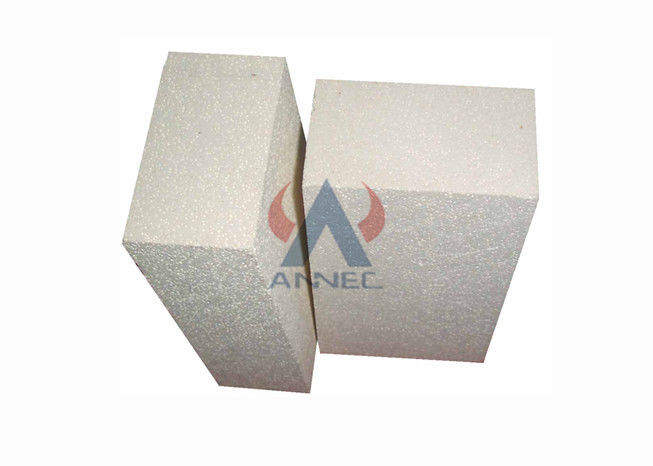

Ultra-Lightweight Alumina Bubble Brick For Furnace Insulation Layer

Compared with ordinary alumina bubble bricks, our ultra-lightweight alumina bubble bricks have the following characteristics:

(1) Lower bulk density. Compared with ordinary alumina bubble bricks with 99% AI2O3 content and a bulk density of at least 1.5 g/cm3, ultra-lightweight alumina bubble bricks can reduce the weight of the furnace body sufficiently to save material, energy and cost;

(2) Better thermal shock stability compared to ordinary alumina bubble bricks with a bulk density of 1.5 g/cm3 and AI2O3≥99%;

(3) Extremely low thermal conductivity, only 30% of traditional products, At 400ºC, the thermal conductivity of hot surface of traditional alumina bubble brick with bulk density of 1.5g/cm3 and AI2O3≥ 99% is 0.78w/(m.K), while the thermal conductivity of furnace hot side of Rongsheng's

ultra-lightweight alumina bubble brick is 0.26w/(m.K), and its thermal insulation effect is 3 times of the traditional one. The use of ultra-lightweight alumina bubble bricks can make lower cold side temperatures under the same requirement of insulation layer thickness and greater energy saving, or thinner insulation layer under the same requirement of cold side temperature.

(4)It can be used directly in the working layer of the furnace, and has strong resistance to the erosion of hydrogen fluoride in the furnace for anode material.

Specification

Technical Data of Ultra-lightweight Alumina Bubble Brick

Item JM-26
BD,(g/cm3) ≤1.0
CCS,(MPa) ≥3.0
TC,400ºC(W/m ·K) ≤0.26
PLC (1500ºC*6),% ≤1.0
Al2O3, % ≥45%
Product Application

Application of Alumina Hollow Ball Brick

Alumina Bubble Brick is a kind of very important refractory material for resisting high temperature and special demands of positions for furnace and kiln, which is mostly used as insulating brick for insulation layer of furnace and kiln, and also can be used for service linings in manufacturing high-purity quartz for the electronics industry such as ceramic tile linings in gas turbines and backup linings in reactors.


Ultra-Lightweight Alumina Bubble Brick for Furnace Insulation Layer
