Place of Origin:
China
Brand Name:
ANNEC
Certification:
ISO

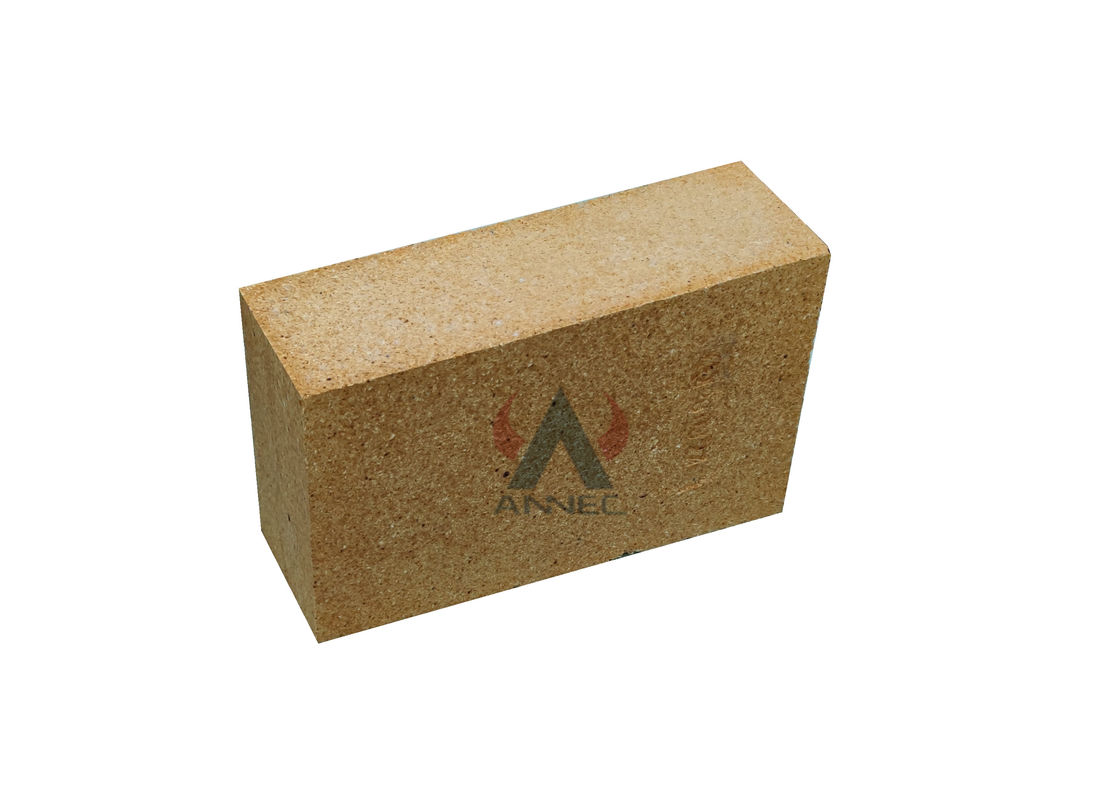

Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove
Definition:
Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove use Chamotte that the fire clay is calcinated as the main material. Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove consist of fire clay and binder. The chemical components of these bricks are SiO2 and Al2O3. (Al2O3=25~40%) fireclay bricks are cheap so that they are used for all kinds of industrial furnaces.
The main applications of Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove the low temperature parts such as blast furnaces and hot blast furnaces, waste incinerators and glass melting furnaces. Due to the scale-up of a variety of industrial furnaces and severity of operating conditions, super dense fireclay bricks that made of more refined chamotte being calcinated at high temperature are applied more than before.
Advantage:
1. High refractoriness,
2. High-temperature endurable.
3. Good corrosion resistance.
4. Good spalling resistance and wear resistance.
5. Good thermal shock resistance.
6. High mechanical strength.
7. High-temperature creep rate is low.
8. Good volume stability at high temperature.
Application:
Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove can be used to furance contruction,blast furance/hot blast stove,steel foundries,furnace in the nonferrous metal industry,coke oven and gas furnace,galss industry,cement industry,safty lining of ladle and backup lining of boiler
Product Description:
| Fired Clay Refractory Assembly Brick | ||||
| Item | Unit | RN-42 | HRN-42 | HRN-48 |
| AL2O3 % | % | ≥42 | ≥42 | ≥48 |
| Fe2O3 % | % | ≤ 1.7 | ≤ 1.7 | ≤ 1.7 |
| Refractoriness | ℃ | ≥1750 | ≥1750 | ≥1750 |
| Bulk density | g/cm3 | ≥2.15 | ≥2.15 | ≥2.35 |
| Apparent porosity | % | ≤ 24/23 | ≤ 24/21 | ≤ 24/21 |
| cold crushing strength | Mpa | ≥30 | ≥40 | ≥40 |
| 0.2MPa,Refractoriness under load,℃ | ℃ | ≥ 1400 | ≥ 1520 | ≥ 1550 |
| Permanent linear change | % | 0～-0.3 | 0～-0.3 | 0～-0.3 |
| thermal shock resistance, ( 1100 ℃ water ) |
cycle | ≥ 20 | ≥30 | ≥40 |
Packaging and shipping
Standard packing: waterproof inner packing + outer packing suitable for container transportation
