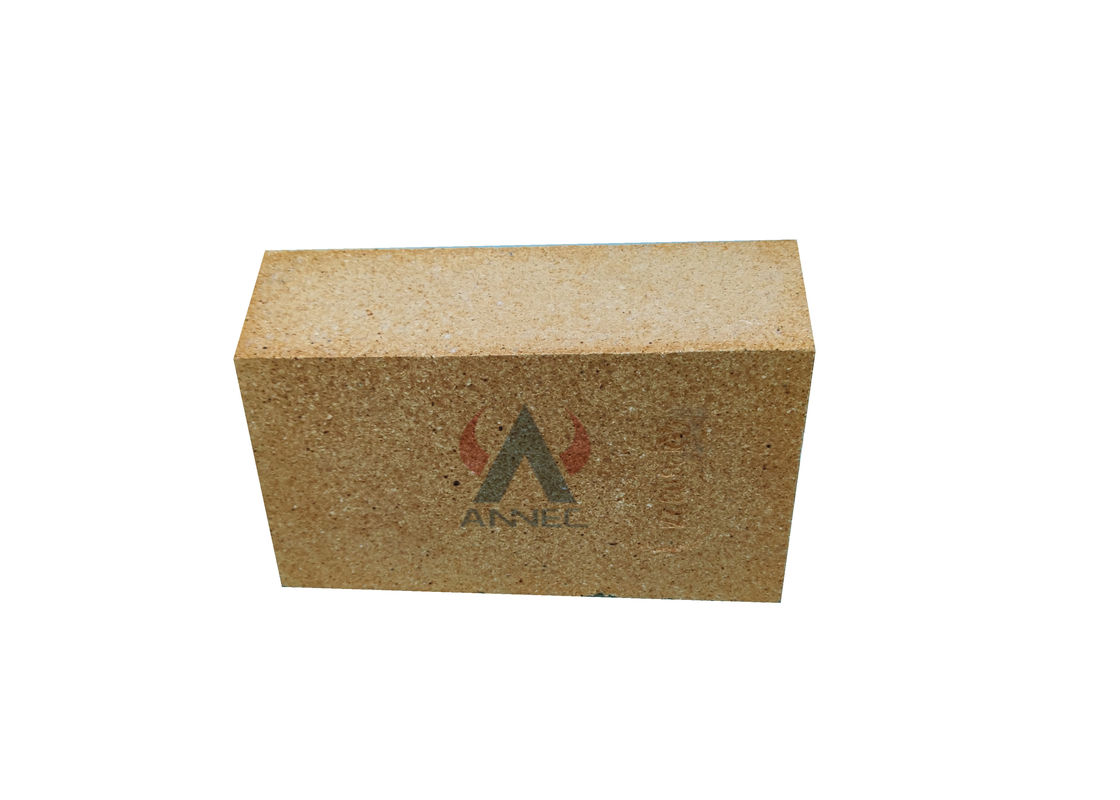

Solid Fe2O3 High Alumina Clay Refractory Brick For Industrial Furnaces

Solid Fe2O3 High Alumina Clay Refractory Brick For Industrial Furnaces
Solid Fe2O3 High Alumina Clay Refractory Brick For Industrial Furnaces

Large Image :  Solid Fe2O3 High Alumina Clay Refractory Brick For Industrial Furnaces

Product Details:
Place of Origin: China
Brand Name: Annec
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 5 tons
Packaging Details: 24 pallets for one 20GP container
Delivery Time: 60-120 days
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 7500 tons/per month

Solid Fe2O3 High Alumina Clay Refractory Brick For Industrial Furnaces

Description
Al2O3: 40-55 Fe2O3: 0-1.7
Apparent Porosity: 20-28 Bulk Density: 2.1-2.2
Cold Crushing Strength: 30-60 0.2MPa,Refractoriness Under Load: 1400-1550
Standard Size: 230*114*73mm Application: Fire Clay Brick For Industrial Furnaces
High Light:

Solid Fe2O3 Clay Refractory Brick

,

e2O3 High Alumina Clay Refractory Brick

,

Industrial Furnaces Clay Refractory Brick

Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove



Definition:

   Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove use Chamotte that the fire clay is calcinated as the main material. Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove consist of fire clay and binder. The chemical components of these bricks are SiO2 and Al2O3. (Al2O3=25~40%) fireclay bricks are cheap so that they are used for all kinds of industrial furnaces.

The main applications of
Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove the low temperature parts such as blast furnaces and hot blast furnaces, waste incinerators and glass melting furnaces. Due to the scale-up of a variety of industrial furnaces and severity of operating conditions, super dense fireclay bricks that made of more refined chamotte being calcinated at high temperature are applied more than before.



Advantage:

1. High refractoriness,

2. High-temperature endurable.

3. Good corrosion resistance.

4. Good spalling resistance and wear resistance.

5. Good thermal shock resistance.

6. High mechanical strength.

7. High-temperature creep rate is low.

8. Good volume stability at high temperature.



Application:

    Solid Fire Fe2O3 Clay Refractory High Alumina Light Weight Fire Clay Refractory Brick For hot blast stove can be used to furance contruction,blast furance/hot blast stove,steel foundries,furnace in the nonferrous metal industry,coke oven and gas furnace,galss industry,cement industry,safty lining of ladle and backup lining of boiler





Product Description:

Fired Clay Refractory Assembly Brick
Item Unit RN-42 HRN-42 HRN-48
AL2O3 % % ≥42 ≥42 ≥48
Fe2O3 % % ≤ 1.7 ≤ 1.7 ≤ 1.7
Refractoriness ≥1750 ≥1750 ≥1750
Bulk density g/cm3 ≥2.15 ≥2.15 ≥2.35
Apparent porosity % ≤ 24/23 ≤ 24/21 ≤ 24/21
cold crushing strength Mpa ≥30 ≥40 ≥40
0.2MPa,Refractoriness under load,℃ ≥ 1400 ≥ 1520 ≥ 1550
Permanent linear change % 0~-0.3 0~-0.3 0~-0.3
thermal shock resistance,
( 1100 ℃ water )
cycle ≥ 20 ≥30 ≥40



Packaging and shipping

Standard packing: waterproof inner packing + outer packing suitable for container transportation
