Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace

Certification
China Zhengzhou Annec Industrial Co., Ltd. certification
China Zhengzhou Annec Industrial Co., Ltd. certification
Customer Reviews
good job and nice quality! Hope our next business

—— Carsten Schmickler

very nice company.waiting for my next visit

—— Neetu Arora

good quality, but price is higher than other supplier.

—— Bipin Vagal

thank you for your products and service. During the project, the staff from your company cooperated with our side perfectly. The goods are all follow our order. The after-sale service also good.

—— SHOUGANG GROUP

I'm Online Chat Now

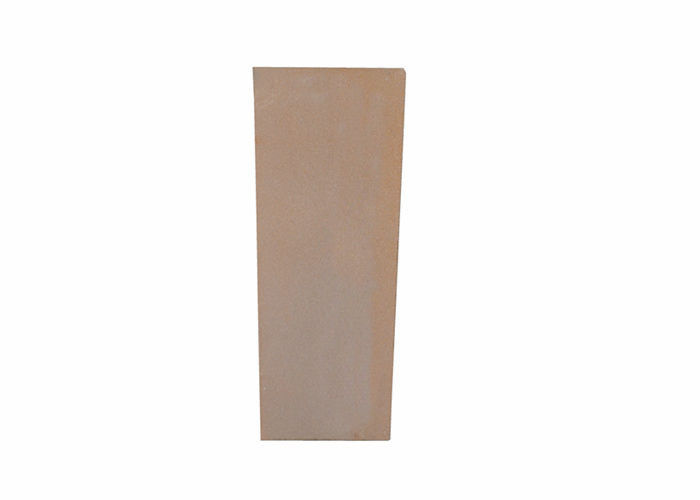

Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace

Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace
Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace

Large Image :  Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace

Product Details:
Place of Origin: China
Brand Name: Annec
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Packaging Details: 12-24 pallets for one 20 GP container
Delivery Time: 50-120 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 Tons/per tons

Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace

Description
Bulk Density ( G/cm3): ≤1.3 Cold Crushing Strength (MPa): ≥5.0
Linear Change On Reheating(5h,≤2%): ≥1350 Application:: Industrial Furnaces
Type:: Ceramic Raw Materials Color:: Light Yellow
High Light:

1350C High Temp Fire Brick

,

Yellow Insulation High Temp Fire Brick

,

Steel Furnace Clay Insulating Brick

Yellow Low Bulk Density 1350C Fire Clay Bricks Insulating Refractory Brick refractory bricks used For steel Furnace





Item NG135-1.3 NG135.1.2 NG135-1.1 NG130-1.0
Bulk Density ( g/cm3) ≤1.3 ≤1.2 ≤1.1 ≤1.0
Cold Crushing Strength (MPa) ≥5.0 ≥4.5 ≥4.0 ≥3.5
Linear Change on Reheating(5h,≤2%) ≥1350 ≥1350 ≥1350 ≥1350
Thermal conductivity(350±25)℃ (W/mK) ≤0.55 ≤0.50 ≤0.45 ≤0.40





The Al2O3 content of the Yellow Low Bulk Density 1350C Fire Clay Bricks Insulating Refractory Brick refractory bricks used For steel Furnace is from 30-48%.During the manufacturing,first mix the clay chamotte with refractory clay powder,then prepared with clay aggregate into dry mud,high pressure molding,sintering at about 1400C.Under high temperature,the Yellow Low Bulk Density 1350C Fire Clay Bricks Insulating Refractory Brick refractory bricks used For steel Furnace show weakly acidic,and the ability of resistance to alkaline slag erosion is poor,but with the increase of the content of Al203,the thermal stability of Yellow Low Bulk Density 1350C Fire Clay Bricks Insulating Refractory Brick refractory bricks used For steel Furnace is better than silica brick, magnesia brick and so on.









Yellow Low Bulk Density 1350C Fire Clay Bricks Insulating Refractory Brick refractory bricks used For steel Furnace is made from clinker clay by mixing, forming, drying, sintering and matching characterized by good resistance to corrosion and abrasion, good thermal shock resistance, good spelling resistance, high mechanical strength, good volume stability under high temperature.

Yellow Low Bulk Density 1350C Fire Clay Bricks Insulating Refractory Brick refractory bricks used For steel Furnace is made of local top grade fireclay materials under the high temperature according to the lasted national standard, which possesses even bulk density, high strength, low thermal conductivity and low impurity.









Advantage









1. Good resistance to corrosion and abrasion,

2. Perfect thermal shock resistance,

3. Good spalling resistance,

4. High mechanical strength,

5. Good volume stability under high temperature,

6. Excellent thermal performance, and acid resistance.















Application:

1) Cement and other building materials industry kiln back insulation;

2) Petrochemical, metallurgical, ceramics, glass industry, the furnace lining insulation;

3) Heat treatment furnace backlash insulation;

4) Non-ferrous metal industry back insulation;

5) High temperature reaction, heating equipment back insulation.



Low porosity clay bricks can be applied to steel, nonferrous metals, glass, cement, ceramics, pertrifaction, machinery, boiler, light industry, electric power, war industry and other economic filed, which is the indispensable basic material to ensure above production running and technological development, it plays an incomparable important role in the development of high temperature industrial production.

Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace 0Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace 1Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace 2Yellow Insulation 1350C High Temp Fire Brick For Steel Furnace 3
