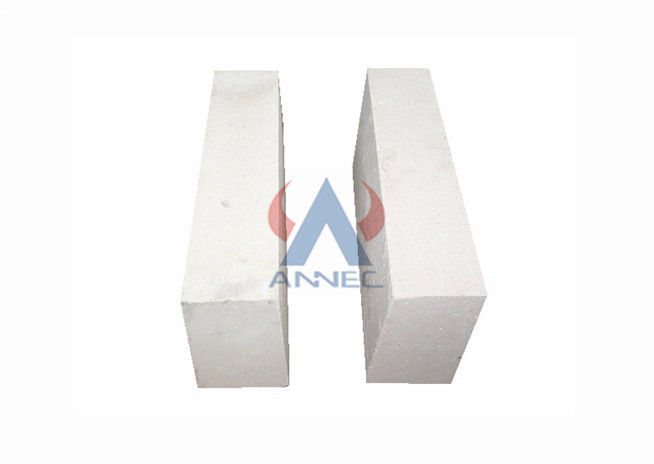

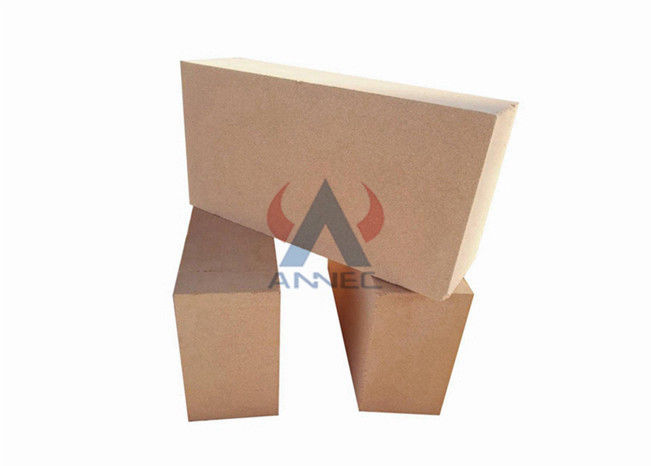

Low Density Refractory Clay Insulating Brick For Cement Kiln

Low Density Refractory Clay Insulating Brick For Cement Kiln

Low Density Clay Insulating Brick

Cement Kiln Clay Insulating Brick

Mullite Furnace Clay Insulating Brick

Place of Origin:

China

Brand Name:

Annec

Model Number:

NG125-0.8/NG125-0.6/NG115-0.4

Contact Us
Request A Quote
Product Details
Bulk Density:
≤0.8 G/cm3
Linear Change On Reheating,(5h,≤2%):
≥1250 ℃
Thermal Conductivity(350±25)℃:
≤0.35 W/m·K
Characteristic 1:
Light Weight
Characteristic 2:
Low Thermal Conductivity
Origin:
Henan China
Highlight:

Low Density Clay Insulating Brick

,

Cement Kiln Clay Insulating Brick

,

Mullite Furnace Clay Insulating Brick

Payment & Shipping Terms
Minimum Order Quantity
5 Tons
Packaging Details
12-24 pallets for one 20 GP container
Delivery Time
50-120 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1500 Tons/ per month
RELATED PRODUCTS
Contact Us
86-0371-69938888
Contact Now
Product Description

High purity fire clay brick refractory Low Density Refractory Clay Insulating Brick For Cement Klin



Definition:

    High purity fire clay brick refractory Low Density Refractory Clay Insulating Brick For Cement Klingenerally refer to refractory bricks with a density less than 1.3 g/cm3. Due to the characteristics of low density, high porosity, small thermal conductivity, good thermal insulation and certain compressive strength, High purity fire clay brick refractory Low Density Refractory Clay Insulating Brick For Cement Klin have been widely used in heat treatment equipment.





     High purity fire clay brick refractory Low Density Refractory Clay Insulating Brick For Cement Klin were mainly made from chamotte, flint clay and combining clay powder, being high pressure pressed and sintered in high temperature.



     High purity fire clay brick refractory Low Density Refractory Clay Insulating Brick For Cement Klin are made from low mullite stones, the main mineral composition of the low mullite stones are pressed and sintered mullite phases. The bricks have very good physical and chemical properties in high temperature conditions.

Advantage:



    (1)  Light weight: using this product in construction can reduce the weight of the building and greatly reduce the comprehensive cost of the building.


    (2) Insulation and heat insulation: During the manufacturing process of aerated concrete, tiny pores are formed inside, and these pores form an air layer in the material, which greatly improves the effect of thermal insulation


    (3) Sound absorption and sound insulation: good sound absorption and sound insulation performance can create high airtight indoor space for you. Provide you with a quiet and comfortable environment.


    (4) Small shrinkage value: The excellent material with a small shrinkage value ensures that your wall will not crack.


    (5) Impermeability: The pore structure of this product makes the capillary action poor, and the water absorption and moisture conduction are slow. The time required for the same volume of water absorption to saturation is 5 times that of clay bricks.


    (6) Environmental protection: no pollution during manufacturing, transportation and use, protect cultivated land, save energy and reduce consumption, and belong to green environmental protection building materials.



Application:





High purity fire clay brick refractory Low Density Refractory Clay Insulating Brick For Cement Klin, mainly used for a variety of industrial furnace without contact with molten material and no erosion of the role of thermal insulation materials.



Product Description:

 Lightweight Fire Brick​
Item NG125-0.8 NG120-0.6 NG115-0.4
Bulk Density ( g/cm3) ≤0.8 ≤0.6 ≤0.4
Cold Crushing Strength (MPa) ≥3 ≥2 ≥1
Linear Change on Reheating(≤2%) ≥1250 ≥1200 ≥1150
Thermal conductivity(350±25)℃ (W/mK) ≤0.35 ≤0.25 ≤0.20
