Clay Insulating Brick High purity fire clay brick refractory for cupola furnace
Standard sizing:This brick is special size for pipes of industry furance ,Special size and OEM Service also provide!
The size is precise, providing kinds of shapes according to customer's drawing
Definition:
Light Weight Red Aluminum Oxide 1350c Clay Insulating Brick generally refer to refractory bricks with a density less than 1.3 g/cm3. Due to the characteristics of low density, high porosity, small thermal conductivity, good thermal insulation and certain compressive strength, light-weight refractory bricks have been widely used in heat treatment equipment.
The materials of ordinary light-weight heat-resistant refractory brickLight Weight Red Aluminum Oxide 1350c Clay Insulating Bricks are clay, high-alumina high-strength floating bead bricks, low-iron mullite, high-aluminum poly light-insulating refractory bricks, and diatomaceous earth heat-resistant refractory bricks.
Raw material:Aluminum silicate glass hollow beads that are flotated from the fly ash of the heat and power plant.Low bulk density,thin wall,hollow,smooth surface,high temperature refractoriness,good insulation performance.With these of the good specifications,the high quality insulation refractory bricks can be made.
Advantage:
(1). good heat resistance, high temperature.
(2). small thermal expansion, good peeling resistance.
(3). good corrosion resistance.
(4). good chipping resistance.
Application:
Metallurgy, building materials, chemical industry, petroleum, machinery manufacturing, silicate, power and other industries.
It’s widely used for the linings and insulating layers of industry kilns, and the areas without strong erosion and souring action by molten materials at high temperature.
Product Description:

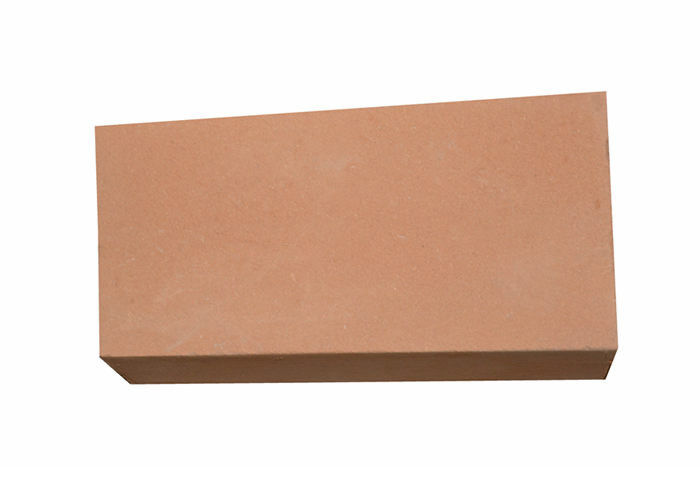

Red Clay Insulating Brick
| Item |
NG135-1.3 |
NG135.1.2 |
NG135-1.1 |
NG130-1.0 |
| Bulk Density ( g/cm3) |
≤1.3 |
≤1.2 |
≤1.1 |
≤1.0 |
| Cold Crushing Strength (MPa) |
≥5.0 |
≥4.5 |
≥4.0 |
≥3.5 |
| Linear Change on Reheating(5h,≤2%) |
≥1350 |
≥1350 |
≥1350 |
≥1350 |
| Thermal conductivity(350±25)℃ (W/mK) |
≤0.55 |
≤0.50 |
≤0.45 |
≤0.40 |
