Annec Shuttle Kiln Thermal Insulating Fire Brick 2.0MPa

Annec Thermal Insulating Fire Brick

Thermal Insulating Fire Brick 2.0MPa

AL2O3 High Alumina Insulating Brick

Place of Origin:

China

Brand Name:

Annec

Certification:

ISO

Model Number:

PSB

Request A Quote

Annec Shuttle Kiln Thermal Insulating Fire Brick 2.0MPa

Product Details

AL2O3(%):

≥36

Fe2O3(%):

≤1.0

Bulk Density (g/cm3):

≤1.05

Cold Crushing Strength (MPa):

≥2.0

Permanent Linear Change(%):

±2(1400℃×2h

Application:

Furnace

Highlight:

Annec Thermal Insulating Fire Brick

Thermal Insulating Fire Brick 2.0MPa

AL2O3 High Alumina Insulating Brick

Payment & Shipping Terms

Minimum Order Quantity

20 tons

Price

700-800 USD per ton

Packaging Details

Pallet With Film Wrapped

Delivery Time

15-21days

Payment Terms

L/C, T/T

Supply Ability

2000tons per month

RELATED PRODUCTS

86-0371-69938888

Contact Now

Product Description

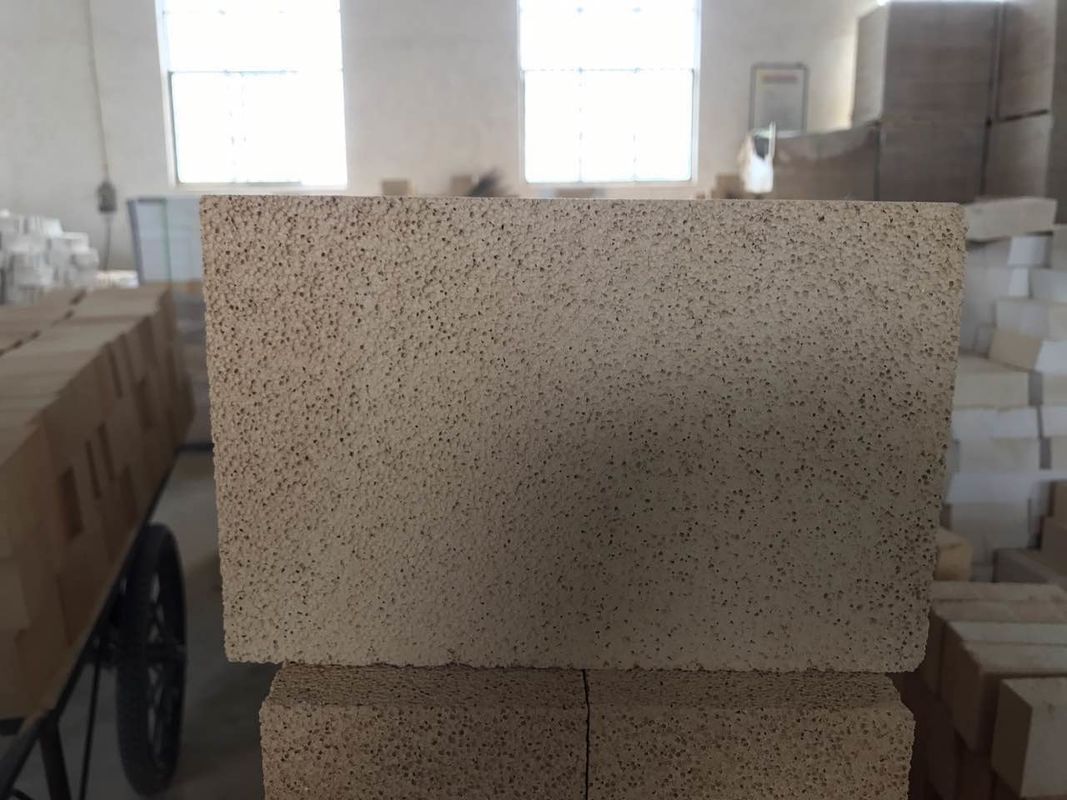

Refractory lightweight high alumina thermal insulating fire brick

Description of High Alumina Insulation Brick

Light Weight High Alumina Brick, also known as high-aluminium heat insulating brick, are used in building heat insulating walls or heat preserving walls, which is basically for preserving or insulating heat. Light weight high alumina bricks contain more than 48% alumina oxide. This kind of brick does not directly exposed to high temperature inside kilns or furnaces, it only built closely to the kiln wall as insulations. It is a good insulation refractory material, which has a high compressive strength, low thermal conductivity and good insulation quality.

High Alumina Insulating Brick Product Data




			High Alumina Insulating Brick​


			Item
			A13
			D14
			D16


			AL2O3(%)
			≥36
			　--
			　--


			Fe2O3(%)
			≤1.0
			　--
			　--


			Bulk Density (g/cm3)
			≤0.8
			≤0.7
			≤1.05


			Cold Crushing Strength (MPa)
			≥2.5
			≥2.0
			≥2.5


			Permanent Linear Change(%)
			±1(1500℃×2h)
			±2(1400℃×2h)
			±1(1600℃×2h)


			Thermal conductivity(350±25)℃ (W/mK)
			≤0.3
			≤0.24
			≤0.38




Features of High Alumina Insulation Brick

1. Small volume density.

2. Low thermal conductivity.

3. Excellent heat insulation.

Application of Light Weight High Alumina Brick
Light Weight High Alumina Brick is used in parts that is not exposed to abrasions and high temperature of melted matters. They should not be applied in environment that has a temperature higher than 1350℃.
. As a low price refractory material, the light weight high alumina bricks are applied in:

. Furnace Lining And Insulation Layers

. Ceramic Tunnel Kiln

. Roller Kiln

. Shuttle Kiln

. Heating Furnace & Coking Furnace In Iron And Steel Industry

. Other Thermal Equipment & Heat Treatment Lining

Packaging:
1. Strong packing will protect the goods from any possible damage during transit.
2. Solid packing and overall stuffing can prevent the cases from vibration and jarring.
3. We must take necessary precaution that the packing can protect goods from pilferage or rain.
4. We can confirm that we take every possible precaution to ensure that our products reach our customers all over the world in prime condition.

High Alumina Insulating Brick
Item	A13	D14	D16
AL2O3(%)	≥36	--	--
Fe2O3(%)	≤1.0	--	--
Bulk Density (g/cm3)	≤0.8	≤0.7	≤1.05
Cold Crushing Strength (MPa)	≥2.5	≥2.0	≥2.5
Permanent Linear Change(%)	±1(1500℃×2h)	±2(1400℃×2h)	±1(1600℃×2h)
Thermal conductivity(350±25)℃ (W/mK)	≤0.3	≤0.24	≤0.38
