Refractory Thermal High Alumina Insulating Brick High Porosity

Refractory Thermal High Alumina Insulating Brick High Porosity

Thermal High Alumina Insulating Brick

Refractory High Alumina Insulating Brick

Annec Insulating Refractory Brick

Place of Origin:

China

Brand Name:

Annec

Certification:

ISO

Contact Us
Request A Quote
Product Details
AL2O3(%):
≥36
Fe2O3(%):
≤1.0
Bulk Density (g/cm3):
≤0.7
Cold Crushing Strength (MPa):
≥2.5
Permanent Linear Change(%):
±1(1500℃×2h)
Thermal Conductivity(350±25)℃ (W/mK):
≤0.24
Highlight:

Thermal High Alumina Insulating Brick

,

Refractory High Alumina Insulating Brick

,

Annec Insulating Refractory Brick

Payment & Shipping Terms
Minimum Order Quantity
20 tons
Packaging Details
Fumigated wooden pallet, using paper or non-woven fabrics between layers separated, plastic shrink film protected outside, then the straps.
Delivery Time
15-20days
Payment Terms
L/C, T/T
Supply Ability
2500-3000 tons per month
RELATED PRODUCTS
Contact Us
86-0371-69938888
Contact Now
Product Description

Refractory lightweight high alumina thermal insulating fire brick



Product Description

High alumina lightweight insulating refractory brick is made by clay clinker or light clinker and plastic clay as the main raw material, usually fuel production, but also can send or chemical foaming method porous structure. Common light chamotte bulk density of 0.75 ~ 1.2g / cm3. It refers to containing AL2O3 30% ~ 46% of lightweight refractory products, mainly for industrial kilns does not melt and no erosion of the contact action of gas insulation layer material, the using temperature is 1200 ~ 1400 ° C.



Technical Technical Standard of High Alumina Insulating brick

High Alumina Insulating Brick​
Item A13 D14 D16
AL2O3(%) ≥36
Fe2O3(%) ≤1.0
Bulk Density (g/cm3) ≤0.8 ≤0.7 ≤1.05
Cold Crushing Strength (MPa) ≥2.5 ≥2.0 ≥2.5
Permanent Linear Change(%) ±1(1500℃×2h) ±2(1400℃×2h) ±1(1600℃×2h)
Thermal conductivity(350±25)℃ (W/mK) ≤0.3 ≤0.24 ≤0.38



Features of lightweight insulating refractory brick:

1. Low levels of iron and other impurities;

2. High mechanical intensity;

3. High refractoriness, can contact with the flame directly, suitable for various atmosphere

4. High porosity, low volume density, low thermal conductivity;

5. Good heat insulating performance and energy-efficient;

6. Excellent thermal shock resistance;

7. Strong resistance to the corrosive gas and slag;

8. Long service life



High aluminium insulating brick lining with standard packing:
1. Wooden pallet with plastic film

2. According to customer's requirement

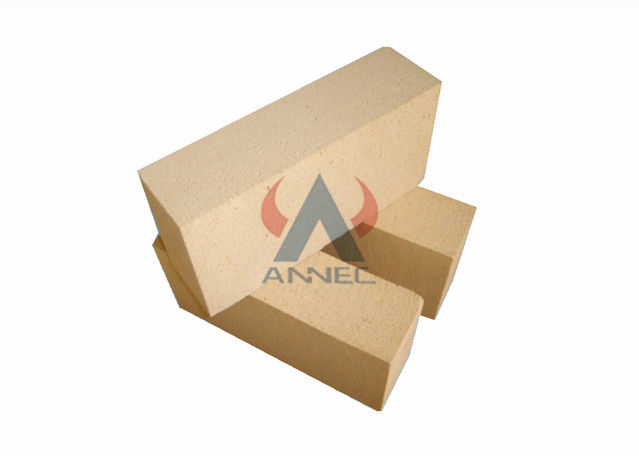

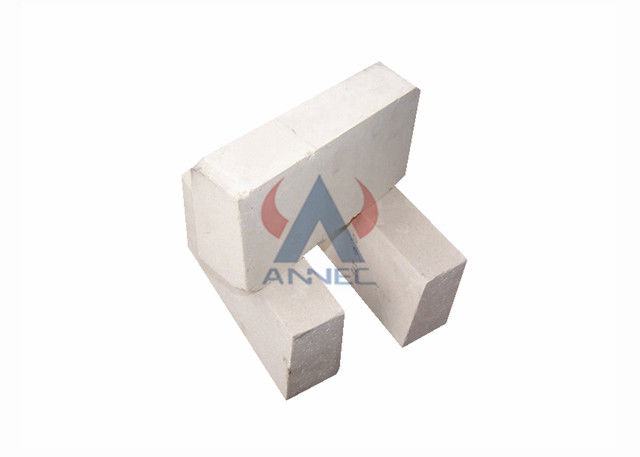

Refractory Thermal High Alumina Insulating Brick High Porosity 0Refractory Thermal High Alumina Insulating Brick High Porosity 1Refractory Thermal High Alumina Insulating Brick High Porosity 2
