Product description

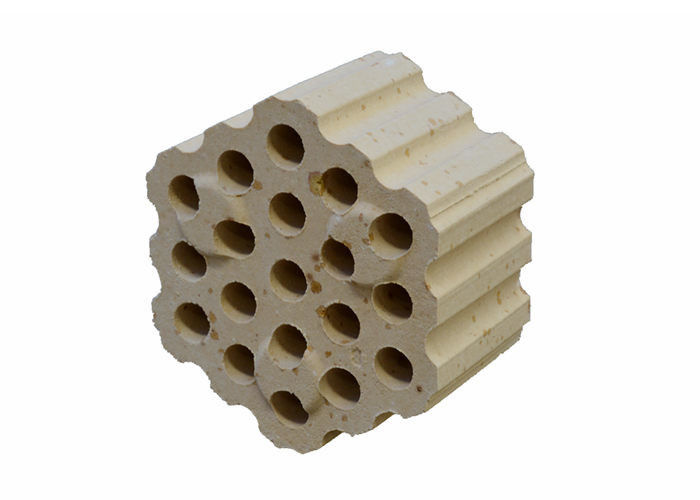

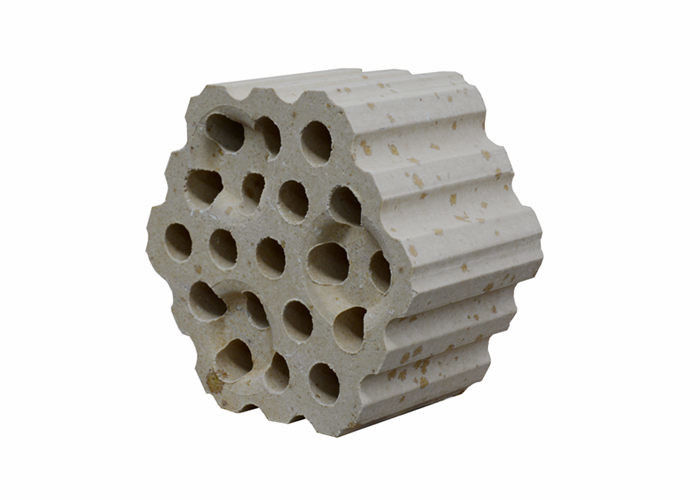

Silica checker brick is a kind of refractory material with high refractoriness and mechanical behavior under high temperature.Fire brick has wide applications, mainly used in metallurgy, construction(cement and glass), petroleum, chemical industry, electric power and machine building.Fire brick is mainly used for industrial furnaces and kilns and thermal equipment.
Physical and Chemical Index of Checker Brick
| Alumina Silica Checker Fire Brick |
| Item |
Unit |
RG-95 |
JG-1 |
JG-2 |
| SiO2 |
% |
≥95 |
≥94.5 |
≥94.5 |
| Al2O3 |
% |
≤1.0 |
≤1.5 |
≤1.5 |
| Fe2O3 |
% |
≤1.3 |
≤1.5 |
≤1.5 |
| CaO |
% |
- |
≤2.5 |
≤2.5 |
| Apparent Porosity |
% |
≤22(24) |
≤22 |
≤24 |
| Bulk Density |
g/cm3 |
≤2.32 |
- |
- |
| Ture Bulk Density |
g/cm3 |
- |
≤2.33 |
≤2.34 |
| Cold Crushing Strength |
Mpa |
≥45(35) |
≥40 |
≥35 |
| Residual Quartz |
% |
≤1.0 |
≤1.0 |
≤1.0 |
| Refractoriness under load, T0.6 |
℃ |
≥1650 |
≥1650 |
≥1650 |
| Creep Rate(1550℃X50h ,0.2MPa) |
% |
≤0.8 |
- |
- |
| Thermal conductivity,1000℃ |
% |
≤1.25 |
≤1.28 |
≤1.3 |
| Linear Change on Reheating(1450℃×2h) |
% |
- |
0~0.3 |
0~0.3 |
Features Of Silica Brick:
Lower impurity content
Excellent resistance in slag abrasion
No shrink in burn repeatedly
Super higher cold crush strength character
Good performance in high temp refractoriness under load
Higher temperate resistant with good refractoriness
Application:
1. Specification:Standard&special shape;
2. Well resist acid slag erosion;
3. Refractoriness under load is close to refractoriness ;
4. Nondeformable under high temperature using
