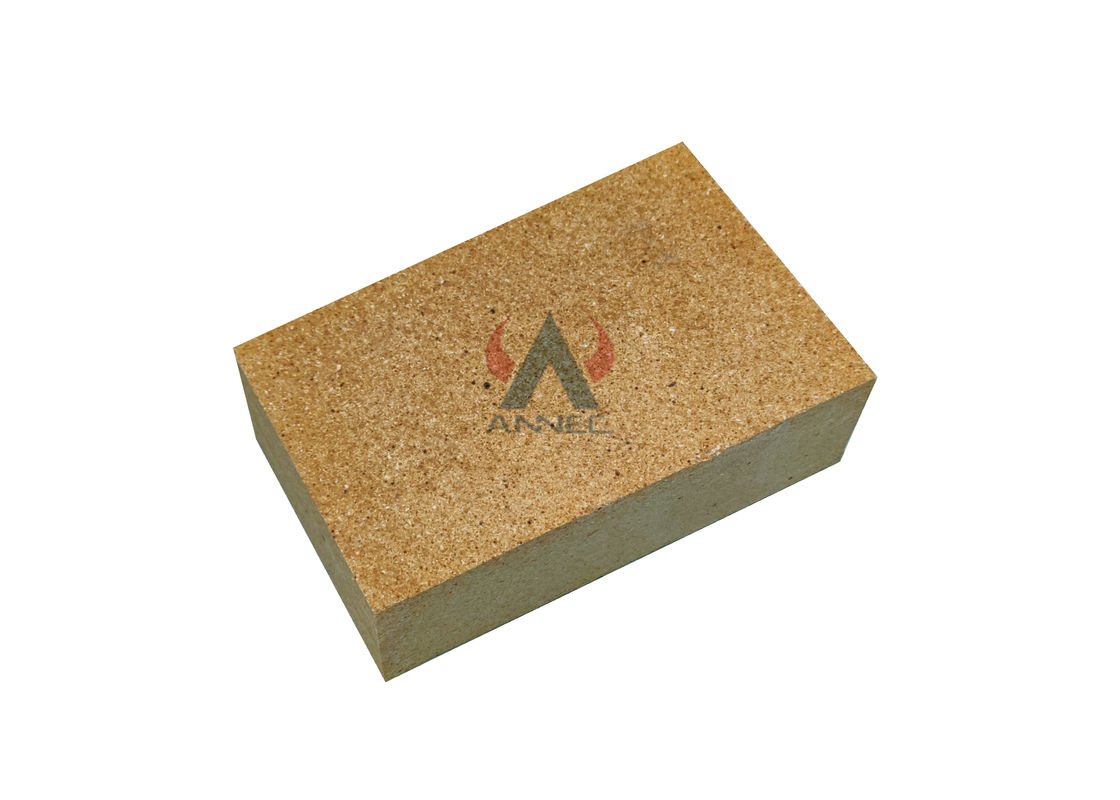

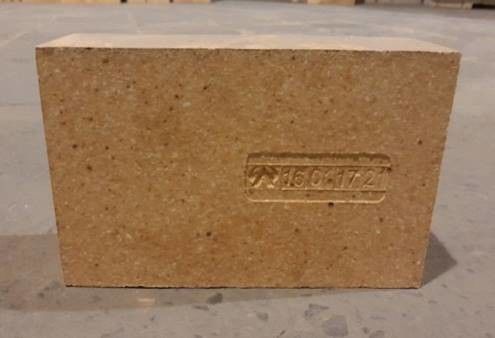

Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant

Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant
Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant

Large Image :  Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant

Product Details:
Place of Origin: China
Brand Name: ANNEC
Certification: ISO
Model Number: AKN-115
Payment & Shipping Terms:
Minimum Order Quantity: 20 ton
Packaging Details: refractory brick packing:wooden pallet and then polyethylene film is placed over it, finally the package is tied up with strips
Delivery Time: 15-25 work days
Supply Ability: 2000-3000 tons per month

Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant

Description
Al2O3: ≥42% Fe2O3: ≤2.0%
Apparent Porosity: ≤22.0% Bulk Density: ≥2.20 Cm³
Material: Clay Shape: Brick
High Light:

Refractory Blast Furnace Clay Fire Brick

,

Fire Resistant Clay Refractory Brick

,

Rotary Kiln Clay Refractory Brick

fireclay brick with high TSR for HBS or Blast furnace. Factory Price ,high temperature fire resiatant



Production description



Fireclay brick with high TSR can be divided into three process: Raw material, molding, burning.Generally, refractory brick was molded by dry pressing. By means of mixing the material uniformity in proportion and aging mixture some time. Then, pour some powders into the module and dry pressing. After dry pressing, the adobe need to pushed in the drying kiln to stoving or stay in the air to drying. This progress will need about 3-5 days. After this progress, then push the adobe into the tunnel furnace or shuttle kiln to burning around 1300C. This progress will be need about 5-7 days.
After burning, the brick will be packed in pallet and leave the factory.



Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 0

Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 1

Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 2



Physical and chemical indexes of fireclay brick with high TSR



 FireClay Brick​ with high TSR
Item NG135-1.3 NG135.1.2 NG135-1.1 NG130-1.0
Bulk Density ( g/cm3) ≤1.3 ≤1.2 ≤1.1 ≤1.0
Cold Crushing Strength (MPa) ≥5.0 ≥4.5 ≥4.0 ≥3.5
Linear Change on Reheating(5h,≤2%) ≥1350 ≥1350 ≥1350 ≥1350
Thermal conductivity(350±25)℃ (W/mK) ≤0.55 ≤0.50 ≤0.45 ≤0.40





Features Of Fireclay Brick With High TSR
Good performance in high temp refractoriness with high temperature fire resiatant
Lower thermal line expansion in high temp
Lower impurity content
Good thermal shock resistance performance
Excellent resistance in slag abrasion
Good cold crush strength


Applications Of Fire Clay Brick With High TSR

refractory brick are mainly used in the low temperature parts of blast furnaces, waste incinerators and glass melting furnaces. Due to the scale-up of a variety of industrial furnaces and severity of operating conditions, super dense clay bricks that made of more refined chamotte being calcinated at high temperature are applied more than before. It's popular in the following furnaces:
1. Blast furnaces and hot blas tstove
2. Waste incinerators
3. Glass melting furnaces

4.Reheating Furnace
5. General Industrial Furnace etc.
6.Cement Rotary kiln, Various Rotary kiln,
7.Chemical Reactor, incinerator, Non Ferreous, metal Furnace,

Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 3Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 4


Specifications Of Fire Clay Brick With High TSR
Hard Fire Clay Bricks
Alumina contents range from 35% to 45%
Widely used throughout metallurgical industry



Packaging

Clay fire bricks will be packed by pallet , also with thermal shrinkage film, packing rope and edge protective paper, so that the brick will be sent to customer with no damage. We have special inspector to follow every order, records the producing and shipping detail, also take photoes before shipping your goods.

Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 5Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 6

Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 7Dry Pressing Refractory Blast Furnace Clay Fire Brick Fire Resistant 8
