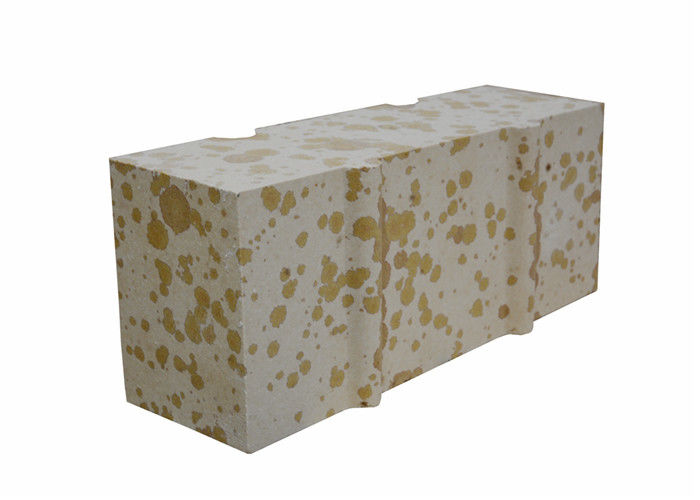

ISO Stove Furnace Fire Clay Silica Insulating Brick Shock Resistance

ISO Stove Furnace Fire Clay Silica Insulating Brick Shock Resistance
ISO Stove Furnace Fire Clay Silica Insulating Brick Shock Resistance

Large Image :  ISO Stove Furnace Fire Clay Silica Insulating Brick Shock Resistance

Product Details:
Place of Origin: Henan China
Brand Name: ANNEC
Certification: ISO
Model Number: PSP
Payment & Shipping Terms:
Minimum Order Quantity: 20ton
Packaging Details: Fumigatiom Wooden Pallet 2. Metal or Cardboard square staff 3. Water-proof Film & Fixed Belt Customized packaging is available.
Delivery Time: 20-25 working days
Payment Terms: L/C, T/T, D/A, MoneyGram
Supply Ability: 2500-3000 ton per month

ISO Stove Furnace Fire Clay Silica Insulating Brick Shock Resistance

Description
Bulk Density: ≤1.15 G /m³ Sio2: ≥90%
Expansion,1000℃: 1.1~1.3% Cold Crushing Strength: ≥5.0 MPa
Refractoriness Under Losd, 0.1Mpa: ≥1500 ℃ Thermal Conductivity, 350℃: ≤0.65
Raw Materials: Raw Materials
High Light:

Fire Clay Silica Insulating Brick

,

Stove Furnace Silica Insulating Brick

,

ISO Silica Insulating Brick

Big sale!!! Silica Insulating Brick for HBS stove or furnace,silica brick, high alumina, fire clay insulating brick



Product descriptions

Insulating silica bricks generally use crystalline raw materials sand as raw materials, and the mineral composition is: phosphorite 78% to 86%, cristobalite 13% to 15%, and quartz 4% to 7%. Add combustible materials to the ingredients, such as coke, sawdust, anthracite, carbonized rice husk, or use gas foaming to form a porous structure. Insulating silica brick Price are heat-insulating silicon refractory products with a SiO2 content of more than 90% and a bulk density of less than 1.2. The refractoriness and softening temperature under load are not much different from ordinary silica bricks with the same composition. However, due to the many pores, the compressive strength, slag resistance, and corrosion resistance are not as good as ordinary silica bricks, but the thermal shock resistance has been improved. It is similar to the production process of ordinary silica bricks. Some mineralizers (CaO, Fe2O3) are added to the ingredients to promote the conversion of quartz, and pulp waste liquid is used as a binder to make the bricks have a certain strength. When using coke or anthracite as combustible additives, because the ash will be brought into Fe2O3 and Al2O3, there is no need to add iron scales in the ingredients. When the siliceous Insulating silica bricks are fired, a strong oxidizing flame should be maintained before 1200°C to make the additions burn out completely.



Product advantages

Insulating silica bricks have the characteristics of low thermal conductivity, high load softening temperature, small residual expansion, and excellent reburning line change performance. They are suitable for industrial furnaces such as coke ovens, hot blast furnaces, glass furnaces and carbon furnaces.



Product application

It is mainly used for the heat insulation layer and working layer of thermal equipment, and can be used for the heat insulation layer of various high temperature stove under high temperature conditions (≤1500℃) without contact with molten slag. This product is suitable for the heat insulation material of the silica brick lining of the high temperature hot blast stove of the large blast furnace and the heat insulation of the silica brick masonry of the furnace.



Silica Insulating Brick catagories

General Insulating silica bricks can be divided into two levels: the first grade can be used in the top of the steel rolling heating furnace and the roof of the silicate industrial stove, and can be directly in contact with the flame; the second grade is used in the general industrial stove or furnace Insulation. Applicable to: industrial furnaces such as coke ovens, hot blast furnaces, glass melting furnaces and carbon calciners. Generally, the bulk density of silicon heat insulation refractory bricks is 0.9-1.1g/cm3, the compressive strength is 2.0-5.9MPa, and the thermal conductivity is 0.35-0.42W/(m·K). It has excellent fire resistance, its softening temperature under load is close to 1620℃ for dense silica bricks, with only a small residual expansion, and its thermal stability is better than dense silica bricks. Therefore, siliceous heat-insulating refractory bricks can be used for a long time under high temperature conditions (1500-1550°C) without contact with molten slag, but they are especially suitable for high-temperature hot-blast furnaces of large blast furnaces. Thermal insulation of silica brick gas.
