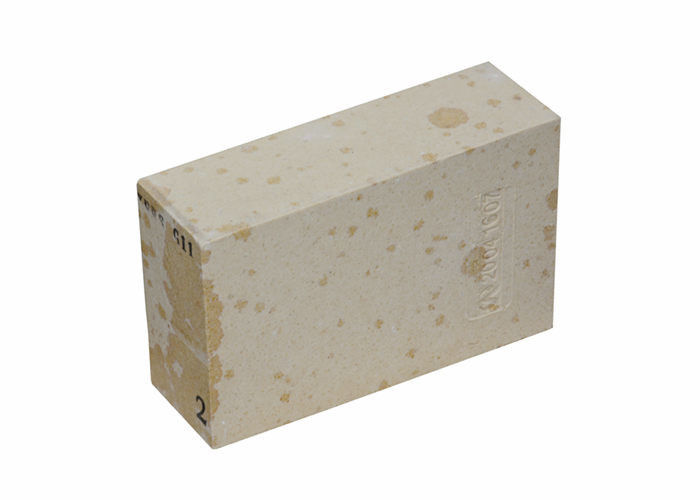

Insulating Alumina Silica Fire Brick High Strength 5.0 MPA

Insulating Alumina Silica Fire Brick High Strength 5.0 MPA
Insulating Alumina Silica Fire Brick High Strength 5.0 MPA Insulating Alumina Silica Fire Brick High Strength 5.0 MPA Insulating Alumina Silica Fire Brick High Strength 5.0 MPA

Large Image :  Insulating Alumina Silica Fire Brick High Strength 5.0 MPA

Product Details:
Place of Origin: China
Brand Name: ANNEC
Certification: ISO9001
Model Number: PSP
Payment & Shipping Terms:
Minimum Order Quantity: 10 Tons
Packaging Details: Standard shipping Package
Delivery Time: 15-25 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000 Ton per Month

Insulating Alumina Silica Fire Brick High Strength 5.0 MPA

Description
Material: Silica SiO2: ≥90%
Expansion,1000℃: 1.1-1.3% Bulk Density: ≤1.15 G/cm³
Cold Crushing Strengt: ≥5.0 MPA Shape: Brick
High Light:

Insulating Alumina Silica Fire Brick

,

High Strength Silica Insulating Brick

,

5.0 MPA Silica Insulating Brick

Hot Sale, Best Quality !!! Silica Insulating bricks with high strength, good thermal insulation,high alumina insulating.

Silica Insulating  Bricks with High Strength

Product Description:



Silica insulating brick with high strength is a kind of light weight insulation brick with silica content more than 91% and the bulk density 1.15g / cm3. It is made of fine divided silica as raw material, adding flammable substances to the ingredients or using a gas generation method to form a porous structure and firing. It is mainly used in various parts of the kiln that require heat insulation or light weight without direct contact with the molten material. The brick can not contact with alkaline refractory under high temperature, the maximum operating temperature is between 1200 and 1550℃.



Physical and Chemical Indexes of Silica Insulating Brick with High Strength



Silica Insulating Brick
Item NG135-1.3 NG135.1.2 NG135-1.1 NG130-1.0
Bulk Density (g/cm3) ≤1.3 ≤1.2 ≤1.1 ≤1.0
Cold Crushing Strength (MPa) ≥5.0 ≥4.5 ≥4.0 ≥3.5
Linear Change on Reheating(5h,≤2%) ≥1350 ≥1350 ≥1350 ≥1350
Thermal conductivity(350±25)℃ (W/mK) ≤0.55 ≤0.50 ≤0.45 ≤0.40



Features Of Silica Insulating Brick with High Strength

  • Lower thermal conductivity
  • Lower bulk density
  • Light weight character
  • Lower creep rate in high temp
  • Good thermal shock resistance performance
  • Higher temperate resistant with good refractoriness

Applications Of silica Insulating Brick with High Strength

The refractory linings of hot surfaces or backing heat-insulating layers of other refractory materials. The refractory linings or heat-insulating materials of the industrial furnaces in the petroleum or chemical industries , such as , ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shuttle kilns, etc.



Packing & Delivery

Silica Insulating bricks with high strengths are fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finally using straps. Or as your requirements.

There are some pictures as reference





Insulating Alumina Silica Fire Brick High Strength 5.0 MPA 0Insulating Alumina Silica Fire Brick High Strength 5.0 MPA 1

Insulating Alumina Silica Fire Brick High Strength 5.0 MPA 2Insulating Alumina Silica Fire Brick High Strength 5.0 MPA 3Insulating Alumina Silica Fire Brick High Strength 5.0 MPA 4

The Price of Silica Insulating Brick with High Strength

1.Strong professional:
Our company has thirty years producing experience in refractory products. Our manager will supervise on a various refractories production materials, process control, quality supervision and package delivery, and ensure the products are 100% qualified.
2.Annual supply:
Our company has passed ISO 9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3 Production equipment:
Production and testing equipment are new, complete and automated or semi- automated. Such modern facilities and equipment have provided the fine technical guarantee for the production and testing.
4. Testing equipment:
Our company's testing equipment as follows:
High Temperature RUL. Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester
