Product Details:
|
| Color: | Yellow | Refractoriness: | ≥1790℃ |
|---|---|---|---|
| Creep Rate: | ≥1500℃ | Apparent Porosity: | ≤23% |
| Bulk Density: | ≥1.8g/cm3 | Fe2O3: | 0.5%-0.8% |
| High Light: | 1.8g/Cm3 Silica Refractory Bricks,1790C Silica Refractory Bricks,1.8g/Cm3 Heating Furnace Refractory Bricks |
||

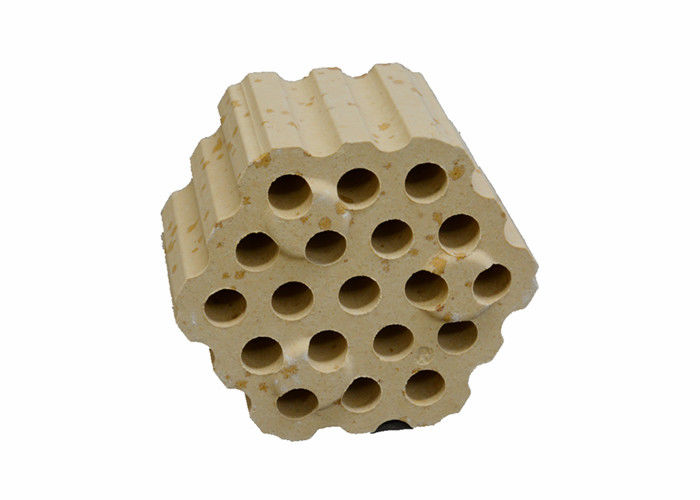

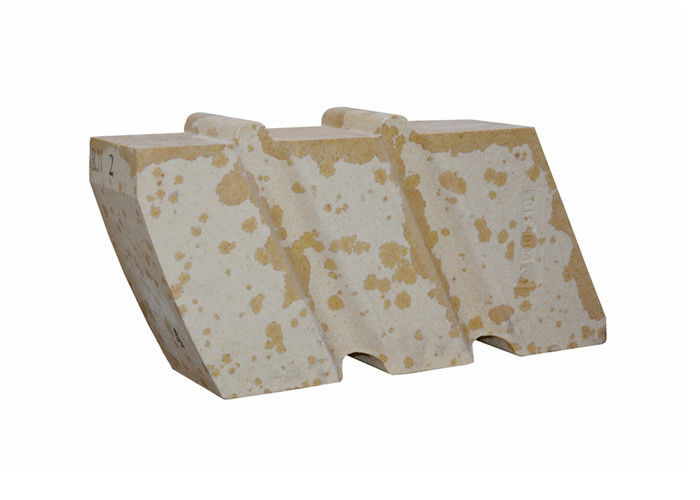

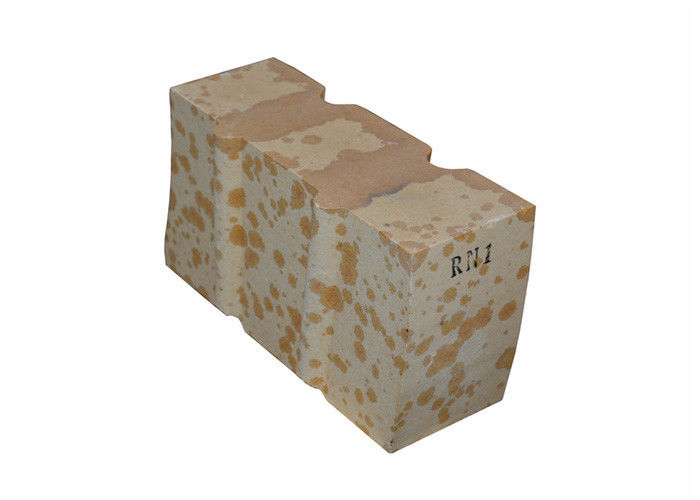

Yellow Heating Furnace 1.8g/Cm3 Silica Refractory Bricks
Basic Info.
Place of Origin: Henan
Means of Transport: Ocean
Supply Capacity
Production Capacity: 20000 ton per year
Packing:as request
Delivery Date: Within 45 days after getting workable deposit
Place of Origin: Henan, China (Mainland)
Shape: Brick
Material: silica stone
SiO2 Content (%): >96%
Al2O3 Content (%): 0.23-0.45
MgO Content (%): 0.8-1.2
CaO Content (%): 0.01
Refractoriness (Degree): 1770°< Refractoriness< 2000°
CrO Content (%): 0.1~0.3%
SiC Content (%): 0.1~1.4%
Model Number: 96A
Brand Name: XUANKUN
Color: Yellow
Size: Customizable
Type: Factory
Bulk Density: 2.0-2.5g/cm3
Certificate: ISO BV SGS
Raw material: SiO2
Fe2O3: 0.5% Max
Advantage: Thermal Shock Resistance
Cold crushing strength(mpa): 40
Introduction of silica brick:
Silica brick is made of quartz stone material, the content of SiO2 is above 96%,it has good resistance to acid slag and good heat conductivity. And the refractoriness is 1690~1710°C,RUL is beyond 1680°C.
SiO2 has different types of crystals in different temperatures, and the transform between the crystals will cause the change of the bulk. So there is a close contact between the changes of SiO2 crystals and the produce ,performance and usage of silica bricks. During the heating, there will be changes of the bulk ,and cristobalite changes most, then quartz, phosphorus quartz is the slowest of all and it also has good heat-conductivity.Coke oven should use the silica brick with small true density. And the phosphorus quartz is better than others.
Feature of silica brick :
1. Better durability. It can withstand continuous heat load within the temperature limits.
2. Low thermal conductivity. It has the incomparable insulation performance within the application range.
3. Light weight and high specific strength. Its specific strength is the highest among the rigid insulation materials.
4. Long service life. It will not produce the powder after long periods of operation as the ceramic fiber felt will do.
5. Better application adaptability. It can be Free Cutting by ordinary woodworking tools.
6. Safe and clean. It has not toxic materials such as asbestos sulfur and chlorine.
Not afraid of wetted. Its performance remain unchanged after being dried
Specification of silica brick :
|
Item |
RG-94 |
|||
|
Brick for roof ,wall of the hot blast stove |
Check brick |
|||
|
SiO2(%) |
≥95 |
|||
|
Al2O3(%) |
≤1.0 |
|||
|
Fe2O3(%) |
≤1.2 |
|||
|
Apparent Porosity(％) |
≤22(24) |
≤24 |
||
|
True Density(g/cm3) |
≤2.33 |
≤2.34 |
||
|
Cold Crushing Strength (Mpa) |
≥40 |
≥30 |
||
|
0.2Mpa Refractoriness Under Load ( ℃) |
≥1650 |
|||
|
0.2Mpa creep rate (1550℃)% |
0h-50h |
≤0.8 |
||
|
The Rest Quartz Content |
≤1.5 |
|||
|
The Coefficient of Thermal Expansion |
≤1.26 |
|||
Advantage of silica brick :
1. Good acid and erosion resistance, powerful anti high-temperature strength.
2. Soften melting temperature is 1680 °C.
3. Low thermal shock resistance.
4. Natural silica as raw material, plus regular mineralizer.
5. Ensure good bonding and structural strength of furnace.
6. Good heat resistance and long service life.
Application of silica brick :
1. Metallurgical industry: the blast furnace, blast furnace hot blast stove, heating furnace, etc.
2. Petrochemical industry: ethylene cracking furnace, hydrogen furnace, a furnace, furnace, etc.
3. Ceramic industry: roller kiln, push board kiln, etc.
4. Industry: glass kiln heat storage room, etc.
5. Carbon industry: carbon calciner, etc
Aluminum electrolytic industry: aluminum electrolytic tank, etc.
Other industries: tunnel kiln, shuttle kiln, etc
Packaging & Shipping
|
Packaging Details: |
Fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finaly using straps. |
|
Delivery Detail: |
10-30working days after receiving deposit |
