Product Details:
|
| Bulk Density: | ≤1.2 G/cm3 | Cold Crushing Strength: | ≥5 MPa |
|---|---|---|---|
| Linear Change On Reheating，（5h,≤0.5 %）: | ≥1550 ℃ | Thermal Conductivity（350±25）℃: | ≤0.70 W/m·K |
| Characteristic 1: | Light Weight | Characteristic 2: | High Refractoriness Under Load |
| SiO2: | ≥91 % | Refractoriness Under Load 0.1MPa: | ≥1520 |
| High Light: | 93% SiO2 Silica Insulating Brick,1550C Silica Insulating Brick,1550C High Temp Silica Brick |
||

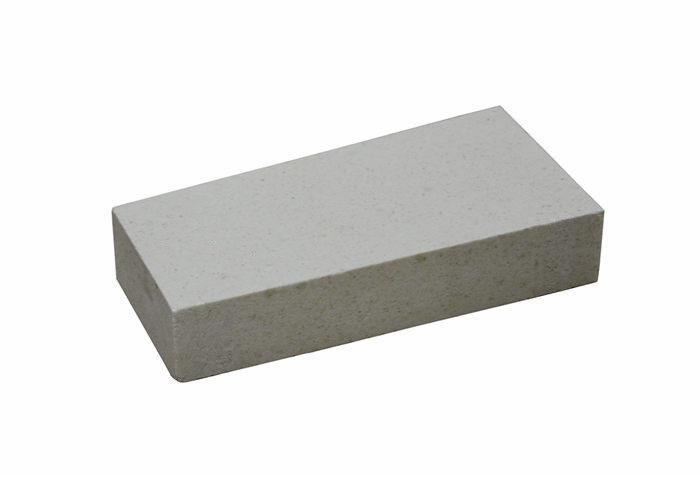

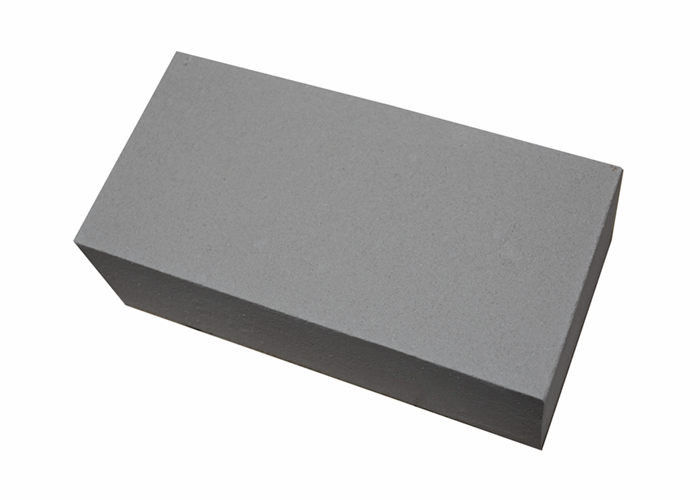

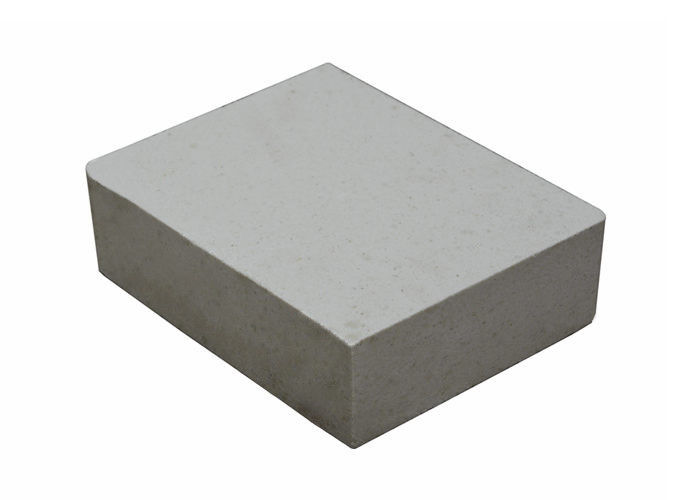

High Temp 1550 Degree 93% SiO2 Silica Insulating Brick
Standard sizing:This brick is special size for pipes of industry furance ,Special size and OEM Service also provide!
The size is precise, providing kinds of shapes according to customer's drawing
Definition:
Light Weight Silica Brick is made of quartz stone material, the content of SiO2 is above 93%. It has good resistance to acid slag and good heat conductivity. And the refractoriness is 1690~1710°C, RUL is beyond 1620°C.
SiO2 has different types of crystals in different temperatures, and the transform between the crystals will cause the change of the bulk. So there is a close contact between the changes of SiO2 crystals and the produce, performance and usage of silica bricks. During the heating, there will be changes of the bulk, and cristobalite changes most, then quartz, phosphorus quartz is the slowest of all and it also has good heat-conductivity.Coke oven should use the silica brick with small true density. And the phosphorus quartz is better than others.
Advantage:
Lower impurity content
Excellent resistance in slag abrasion
No shrink in burn repeatedly
Super higher cold crush strength character
Good performance in high temp refractoriness under load
Higher temperate resistant with good refractoriness
Application:
Light Weight Silica Brick are used in the blast furnace blast area and communicate with the blast furnace exhaust. The light silicon bricks have a temperature range of 1000 ~ 1300 ℃. Can meet the whole cycle life of hot blast stove
Light Weight Silica Brick are also used in the partition walls of the carbonization and combustion chambers of coke ovens, the regenerators and slag chambers of open hearth furnaces, soaking furnaces, glass melting furnaces, refractory materials and ceramic firing kilns. There are also vaults and other load-bearing parts for kilns. It is also used for the high-temperature load-bearing part of hot blast stove and the top of acidic open hearth furnace.
Product Description:
| Light Weight Silica Brick | ||
| Item | GGR-1.2 | |
| SiO2 % | ≥91 | |
| Bulk Density ( g/cm3) | ≤1.2 | |
| Cold Crushing Strength (MPa) | ≥5 | |
| Linear Change on Reheating(%) | 1550℃, 2h | ≤0.5 |
| Refractoriness Under Load 0.1MPa, ℃ |
≥1520 | |
| Thermal conductivity(350±25)℃ (W/mK) | ≤0.70 | |
Why choose us
Q: Are you trading company or manufacturer?
A: We are Manufacturer of refractory materials that have 4 plants in China; So we can provide you with high quality products at more competitive prices. we can provide you professional solutions about your problems. Although our salesman cannot reply you immediately, pls leave your email or phone number, we can let our technician directly help you ASAP.
Q: Do you accept OEM?
A: Sure, we can do OEM for much kind of brick.
Q: What information do we need to provide?
A: If you are clear about the products you purchased, please send us the brick drawings, index(include chemical and physical indicators )and order quantity.
If you are not familiar with it, please tell us the usage and working temperature, we will recommend the product to you.
Q: How long is delivery time?
A: The delivery time will be determined according to the quantity of the order. Our monthly output is 12000tons. We have good connection with shipping company, agency, as well as the local custom and port authority. making sure we deliver on time.
Q: When can I get the price?
A: We usually quote within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.
Q: What is the HS code?
A: The HS code is 69022000.
Q: Is there any cost for the sample?
A: We provide free sample(Less 3 pcs) but don't bear the freight.
Q: What is the Warranty for the fire brick?
A: For all the brick, we have 1 years warranty. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.
