Saving Energy 1550C 91% SiO2 Insulating Refractory Brick

Saving Energy 1550C 91% SiO2 Insulating Refractory Brick
Saving Energy 1550C 91% SiO2 Insulating Refractory Brick Saving Energy 1550C 91% SiO2 Insulating Refractory Brick Saving Energy 1550C 91% SiO2 Insulating Refractory Brick

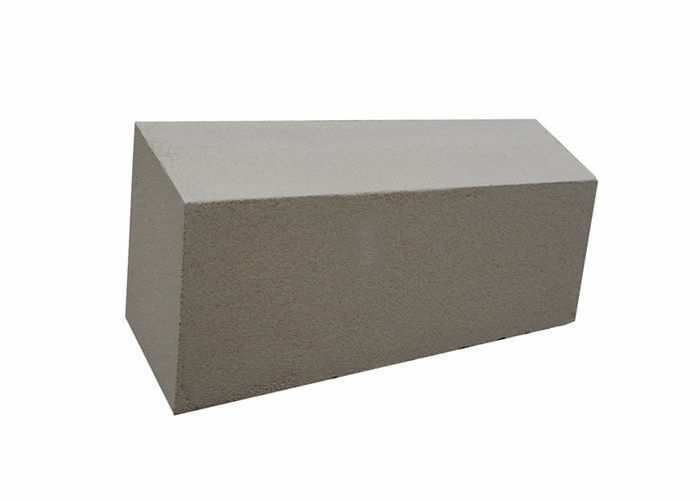

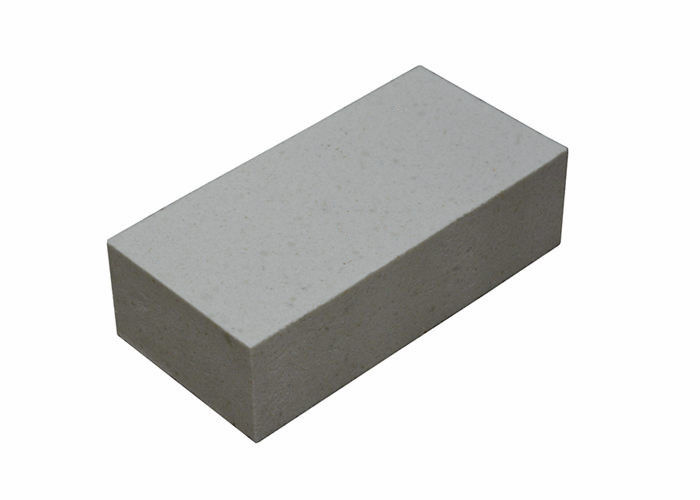

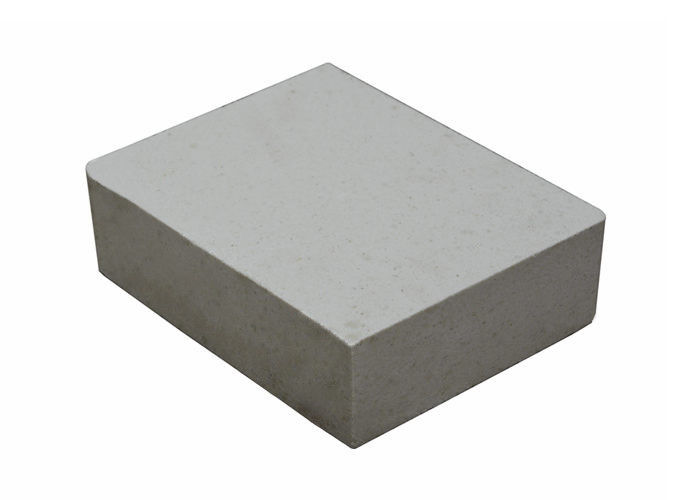

Large Image :  Saving Energy 1550C 91% SiO2 Insulating Refractory Brick

Product Details:
Place of Origin: China
Brand Name: Annec
Model Number: GGR-1.5
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Price: 400-2100 USD/T
Packaging Details: 12-24 pallets for one 20 GP container
Delivery Time: 50-120 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 Tons/ per month

Saving Energy 1550C 91% SiO2 Insulating Refractory Brick

Bulk Density: ≤1.15 G/cm3 Cold Crushing Strength: ≥5 MPa
Linear Change On Reheating,(5h,≤0.5 %): ≥1550 ℃ Thermal Conductivity(350±25)℃: ≤0.65 W/m·K
Characteristic 1: Light Weight Characteristic 2: High Refractoriness Under Load
SiO2: ≥91 % Refractoriness Under Load 0.1MPa: ≥1500
High Light:

91% SiO2 Insulating Refractory Brick


1550C Insulating Refractory Brick


1.15g Silica insulation bricks

Saving Energy 1550C 91% SiO2 Insulating Refractory Brick




    Silica Insulating Fireproof Bricks​​ are made with raw material high grade bauxite and SiC and special sintering process. Silica-mullite bricks are characterized by high density, good performance of abrasion resistance and thermal shock resistance. It can constantly form protective layer for reducing accrection formation, long application cycle,etc.


   Silica Insulating Fireproof Bricks​​​ is mainly used in various parts of the kiln that require heat insulation or reduce its own weight without direct contact with the melt, without the action of aggressive gases, or with sudden temperature changes. When used at high temperature, it must not be in contact with alkaline refractories. According to different materials, the maximum service temperature is 1200~1550℃.




    (1)  Light weight: using this product in construction can reduce the weight of the building and greatly reduce the comprehensive cost of the building.

    (2) Insulation and heat insulation: During the manufacturing process of aerated concrete, tiny pores are formed inside, and these pores form an air layer in the material, which greatly improves the effect of thermal insulation

    (3) Sound absorption and sound insulation: good sound absorption and sound insulation performance can create high airtight indoor space for you. Provide you with a quiet and comfortable environment.

    (4) Small shrinkage value: The excellent material with a small shrinkage value ensures that your wall will not crack.

    (5) Impermeability: The pore structure of this product makes the capillary action poor, and the water absorption and moisture conduction are slow. The time required for the same volume of water absorption to saturation is 5 times that of clay bricks.

    (6) Environmental protection: no pollution during manufacturing, transportation and use, protect cultivated land, save energy and reduce consumption, and belong to green environmental protection building materials.


    (7) Silica Insulating Fireproof Bricks​​ is also a light-weight heat-insulating brick. It has a higher heat resistance temperature than light-weight clay bricks. It can be used in heat-insulating parts to reduce heat loss and increase the efficiency of the melting process.




1). Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.

2). As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, other resistance-heating environment
3). halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.

4). high-power electrical applicance and all kinds of insulation device.



Product Description:


 Silica Insulating Fireproof Bricks
Item GGR-1.5
SiO2 % ≥91
Bulk Density ( g/cm3) ≤1.15
Cold Crushing Strength (MPa) ≥5
Linear Change on Reheating(%) 1550℃, 2h ≤0.5
Refractoriness Under Load
0.1MPa, ℃
Thermal conductivity(350±25)℃ (W/mK) ≤0.65


Why choose us

Q: Are you trading company or manufacturer?

A: We are Manufacturer of refractory materials that have 4 plants in China; So we can provide you with high quality products at more competitive prices. we can provide you professional solutions about your problems. Although our salesman cannot reply you immediately, pls leave your email or phone number, we can let our technician directly help you ASAP.


Q: Do you accept OEM?

A: Sure, we can do OEM for much kind of brick.


Q: Is there any cost for the sample?

A: We provide free sample(Less 3 pcs) but don't bear the freight.


Q: What is the Warranty for the fire brick?

A: For all the brick, we have 1 years warranty. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.


Packaging and shipping

Standard packing: waterproof inner packing + outer packing suitable for container transportation
