Product Details:
|
Bulk Density: | ≤0.7 G/cm3 | Cold Crushing Strength: | ≥2.0 MPa |
---|---|---|---|
Linear Change On Reheating,(5h,≤2%): | ≥1350 ℃ | Thermal Conductivity(350±25)℃: | ≤0.25 W/m·K |
Characteristic 1: | Light Weight | Characteristic 2: | Low Thermal Conductivity |
Al2O3: | ≥48 % | Fe2O3: | ≤2.0 % |
High Light: | 0.7g/Cm3 Fire Retardant Bricks,1350C Fire Retardant Bricks,1350C Heat Insulation Bricks |

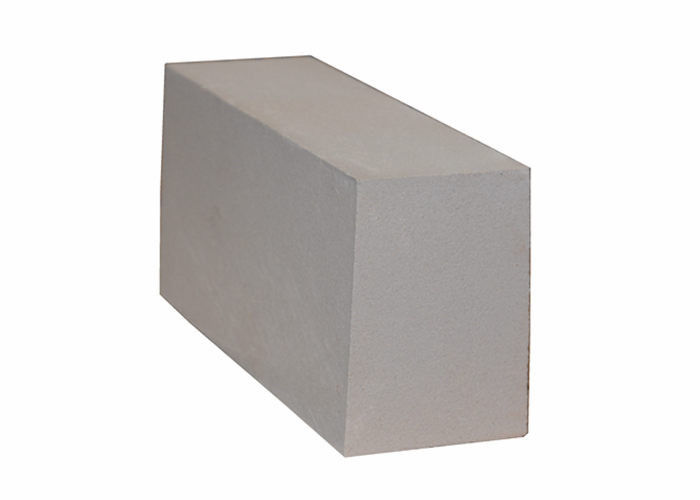

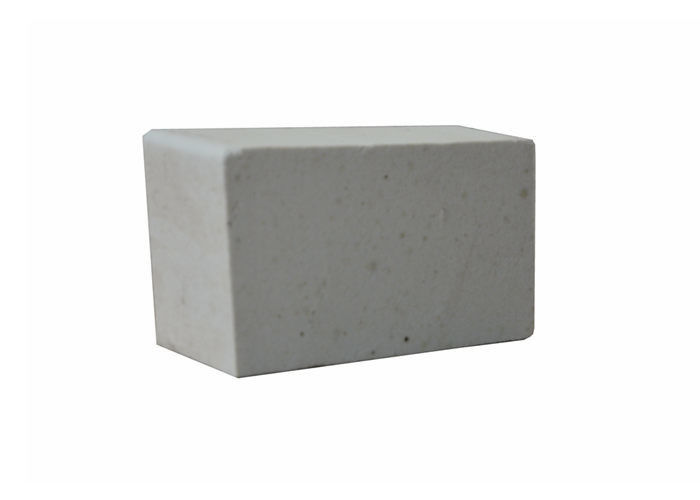

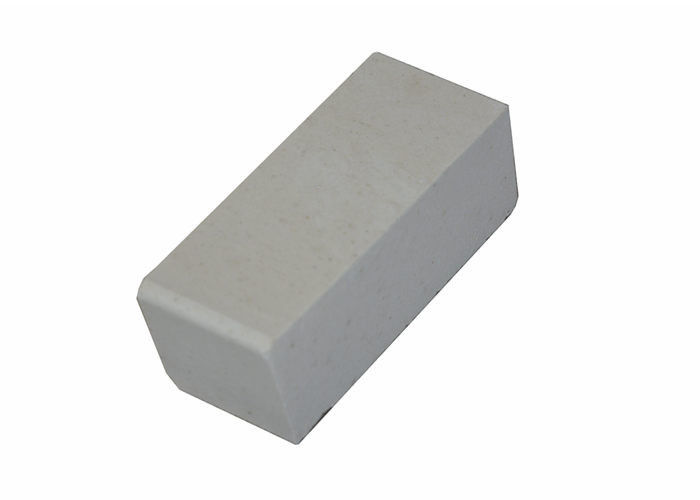

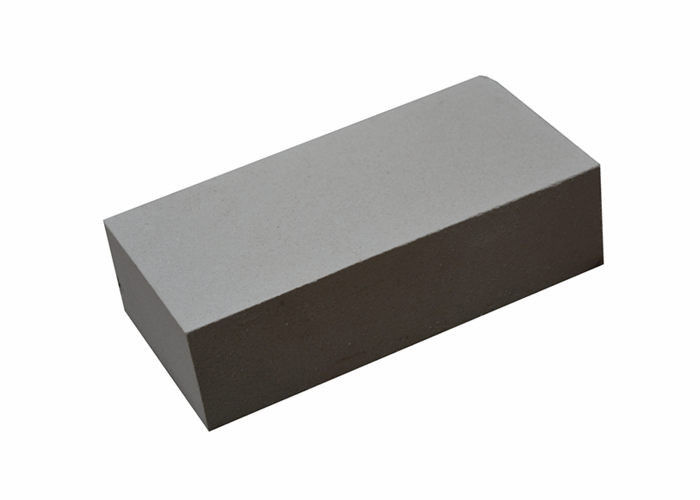

Heat Insulation 1350C 0.7g/Cm3 Fire Retardant Bricks
Standard sizing:This brick is special size for pipes of industry furance ,Special size and OEM Service also provide!
The size is precise, providing kinds of shapes according to customer's drawing
Definition:
Insulating Refractory Brick generally refer to refractory bricks with a density less than 1.3 g/cm3. Due to the characteristics of low density, high porosity, small thermal conductivity, good thermal insulation and certain compressive strength, light-weight refractory bricks have been widely used in heat treatment equipment.
Insulating Refractory Brick is also known as high aluminum insulation brick. Lightweight refractory material with alumina content above 48%, mainly composed of mullite and glass phase or corundum. The bulk density is 0.4 to 1.35 g/cm3. The porosity is 66%~73%, and the compressive strength is 1~8MPa. Good thermal shock resistance.
The materials of ordinary light-weight heat-resistant refractory bricks are clay, high-alumina high-strength floating bead bricks, low-iron mullite, high-aluminum poly light-insulating refractory bricks, and diatomaceous earth heat-resistant refractory bricks.
For strength products, high-quality plate-like corundum and mullite are used as aggregates, sillimanite composite is used as a matrix, special additives and a small amount of rare earth oxides are mixed, and then subjected to high-pressure molding and high-temperature firing.
Advantage:
(1) Light weight:
(2) Insulation and heat insulation:
(3) Sound absorption and sound insulation:
(4) Small shrinkage value:
(5) Impermeability:
(6) Environmental protection:
Application:
Insulating Refractory Brick mainly used for the insulating lining of hot surfaces or backing heat-insulating layers of other
refractory materials. The refractory linings or heat-insulating materials of the industries, such as, ethylene pyrolysis furnaces, ubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns, etc.
Product Description:
Insulating Refractory Brick | ||
Item | Unit | LG135-0.6L |
Al2O3 | % | ≥48 |
Fe2O3 | % | ≤2.0 |
Bulk Density | g/cm3 | ≤0.7 |
Cold Crushing Strength | Mpa | ≥2.0 |
Linear Change on Reheating(≤2%) | ℃ | ≥1350 |
Thermal conductivity(350±25)℃ | W/mK | ≤0.25 |
Why choose us
Q: Are you trading company or manufacturer?
A: We are Manufacturer of refractory materials that have 4 plants in China; So we can provide you with high quality products at more competitive prices. we can provide you professional solutions about your problems. Although our salesman cannot reply you immediately, pls leave your email or phone number, we can let our technician directly help you ASAP.
Q: Do you accept OEM?
A: Sure, we can do OEM for much kind of brick.
Q: What information do we need to provide?
A: If you are clear about the products you purchased, please send us the brick drawings, index(include chemical and physical indicators )and order quantity.
If you are not familiar with it, please tell us the usage and working temperature, we will recommend the product to you.
Q:Is there any cost for the sample?
A: We provide free sample(Less 3 pcs) but don't bear the freight.
Q: What is the Warranty for the fire brick?
A: For all the brick, we have 1 years warranty. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.
.
