Industry Furnace 1.2g 1400C High Alumina Insulating Brick

Industry Furnace 1.2g 1400C High Alumina Insulating Brick

1400C High Alumina Insulating Brick

1.2G High Alumina Insulating Brick

1400C Industry Furnace Brick

Place of Origin:

China

Brand Name:

Annec

Model Number:

LG140-1.2/LG140-1.0

Contact Us
Request A Quote
Product Details
Bulk Density:
≤1.2 G/cm3
Cold Crushing Strength:
≥4.5 MPa
Linear Change On Reheating,(5h,≤2%):
≥1400 ℃
Thermal Conductivity(350±25)℃:
≤0.55 W/m·K
Characteristic 1:
Light Weight
Characteristic 2:
Low Thermal Conductivity
Al2O3:
≥48 %
Fe2O3:
≤2.0 %
Highlight:

1400C High Alumina Insulating Brick

,

1.2G High Alumina Insulating Brick

,

1400C Industry Furnace Brick

Payment & Shipping Terms
Minimum Order Quantity
5 Tons
Price
400-2100 USD/T
Packaging Details
12-24 pallets for one 20 GP container
Delivery Time
50-120 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1500 Tons/ per month
RELATED PRODUCTS
Contact Us
86-0371-69938888
Contact Now
Product Description

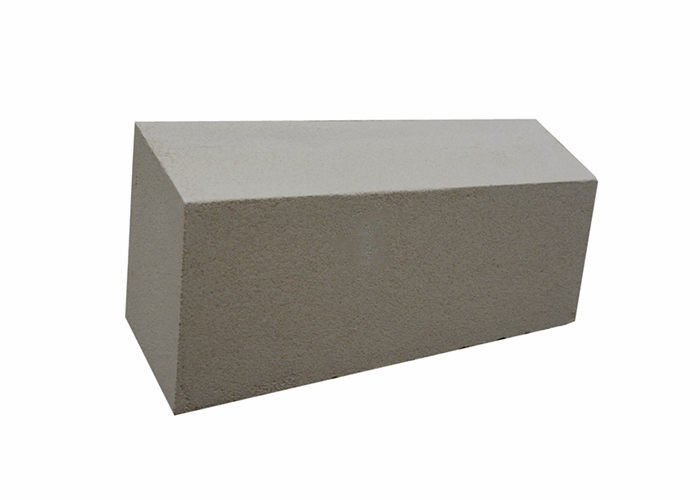

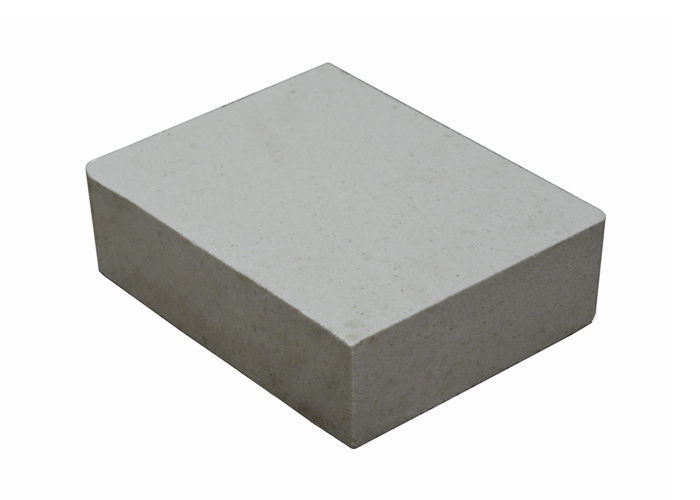

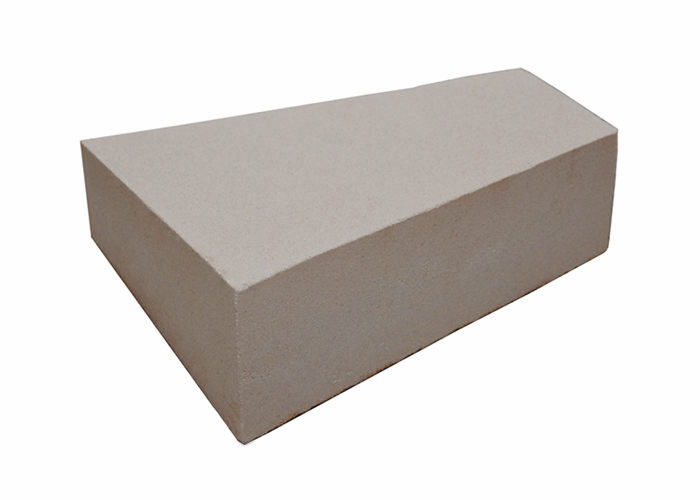

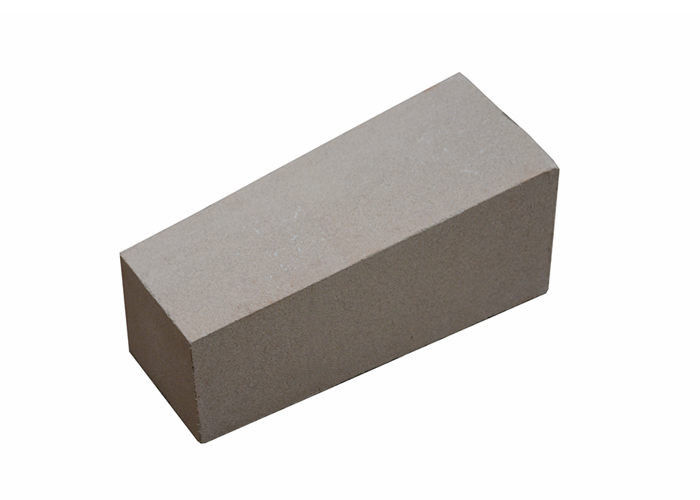

Industry Furnace 1.2g 1400C High Alumina Insulating Brick





Definition:



1. According the shape, High Temp Fire Insulating Brick​​​​​​can be divided into standard brick, special-shaped brick.
2. According thecharacteristic, High Temp Fire Insulating Brick​​​​​​ can be divided into high alumina insulating brick, fire clay insulating brick, Mullite insulating brick, corundum insulating brick, etc.
3. According the application, High Temp Fire Insulating Brick​​​​​​ can be divided into building materials for blast furnace, Building materials for coke oven, Building materials for steel making furnace and so on



Advantage:



  1. Low bulk density, low thermal conductivity, good thermal insulation performance.

2. Refractory category allow direct contact of fire, suitable ofr various atmosphere

3. Good integrity with furnace lining, long service life, easy operation, could be shaped freely

4. Product specification: standard form, normal standard, shaped and special shaped bricks.

5. Can be used in various kilns because of its cheapness and general tray package. Among all of the refractory materials, it is the most widely used.



Application:



   HHigh Temp Fire Insulating Brick​​​​​​ ​​​​​ is mainly used for the partition of coking chamber and combustor of coke making furnace, regenerator chamber and cinder chamber of steelmaking open hearth furnace, soaking pit, refractory material of glass melting furnace and sintering furnace of ceramics and other kiln vault and other load-bearing parts.



    It is also used for high temperature load bearing parts of hot blast furnace and acid open hearth furnace top.



Product Description:







High Temp Fire Insulating Brick​​​​​​

Item

Unit

LG140-1.2

LG140-1.0

Al2O3

%

≥48

≥48

Fe2O3

%

≤2.0

≤2.0

Bulk Density

g/cm3

≤1.2

≤1.0

Cold Crushing Strength

Mpa

≥4.5

≥4.0

Linear Change on Reheating(≤2%)

≥1400

≥1400

Thermal conductivity(350±25)℃

W/mK

≤0.55

≤0.50




Packaging and shipping

Standard packing: waterproof inner packing + outer packing suitable for container transportation
