Place of Origin:
China
Brand Name:
ANNEC
Certification:
ISO, CE
Model Number:
SK34

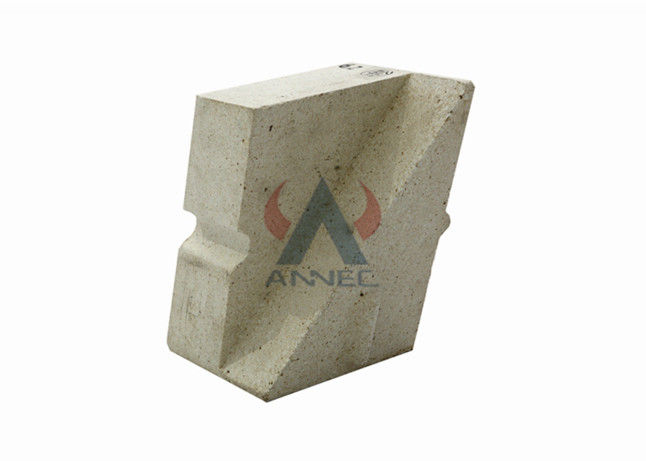

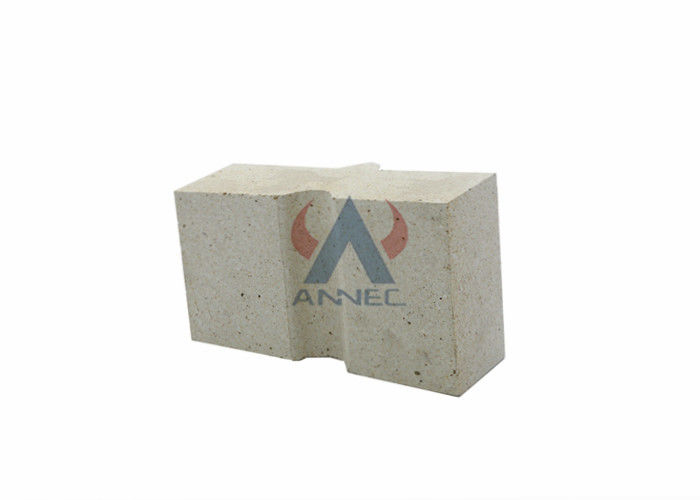

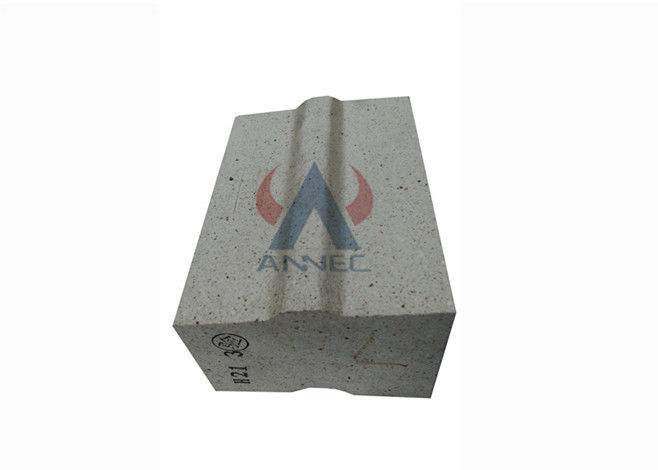

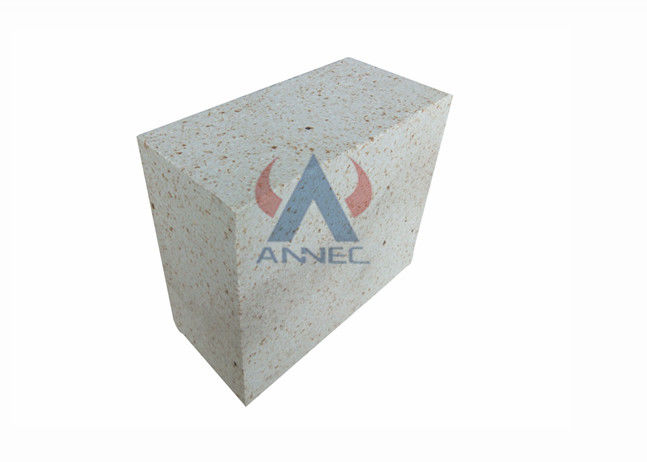

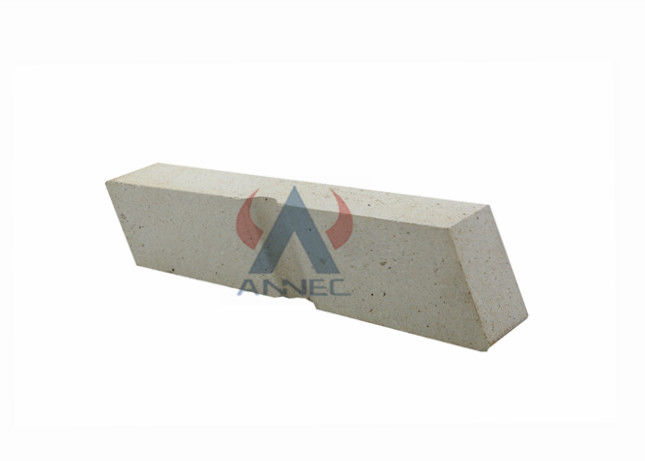

Rotary Kiln Content SK36 SK37 High Alumina Fire Bricks
Data
SK36 High Alumina Brick | |||||
Item | SK-36 | SK-37 | SK-38 | SK-40 | |
Refractoriness, ºC | 1790 | 1820 | 1850 | 1920 | |
Chemical composition | Al2O3, % | 55 | 65 | 70 | 82 |
Fe2O3, % | 2.0 | 2.0 | 2.0 | 2.0 | |
Refractoriness under loading | 0.2Mpa, ºC(≥) | 1450 | 1480 | 1530 | 1600 |
True porosity, % | 20-23 | 20-23 | 20-22 | 18-20 | |
Bulk density, g/cm3 | 2.25-2.4 | 2.3-2.5 | 2.4-2.6 | 2.5-2.7 | |
Cold crushing strength, MPa | 45 | 50 | 60 | 70 |
SK36 High Alumina Brick of over SK35 contain over 45% Alumina and are made from raw materials of unusually high degree of purity of Bauxite and refractory clay. For serve under severe conditions,JUCOS Alumina bricks have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag. We manufacture and design alumina bricks to meet the requirements of a great variety of service conditions thorough quality control.
Production process:
The production methods of SK36 High Alumina Brick and clay bricks are basically the same.
Production practice proves that high-alumina clinker is strictly selected and classified before crushing, and is stored in tiers. The co-fine grinding method of bauxite clinker and combined clay can improve the quality of high-alumina refractory brick
Aluminum oxide (Al2O3) content is higher than 48% SK36 High Alumina Brick
A neutral refractory with an alumina content of more than 48%.Made of bauxite or other raw materials of high alumina content after molding and calcining.High thermal stability, refractoriness in 1770℃ above.Good slag resistance, used for lining steelmaking electric furnace, glass furnace, cement converter, etc.
High charge soft, SK36 High Alumina Brick is a high grade refractory material made of super grade bauxite, fused corundum and fused mullite.
Feature
1. SK36 High Alumina Brick have better thermal conductivity than clay bricks.
2. Because Al2O3 in high aluminum products is high and has less miscellaneous mass, softening temperature under load is higher than clay bricks.
3. The thermal shock resistance of SK36 High Alumina Brick is between clay and silica products.
Applications:
1. Furnaces of metallurgy industry, heat treatment furnace
2. Furnaces of chemical industry and construction industry.
3. Furnace of incineration of garbage, recirculating fluidized bed furnace
Standard sizing: 230 x 114 x 65 mm others up to the client
