Product Details:
|
| Color: | Yellow | Raw Material: | Silica Sand |
|---|---|---|---|
| CCS: | ≥40MPa | SiO2: | ≥95% |
| Bulk Density: | ≥1.78g/cm3 | Apparent Porosity: | ≤23% |
| Shape: | Brick | Application: | Industrial Furnaces |
| High Light: | 1.78g Alumina Silicate Brick,1.78g Yellow Alumina Silicate Brick,1.78g Silica sand Brick |
||

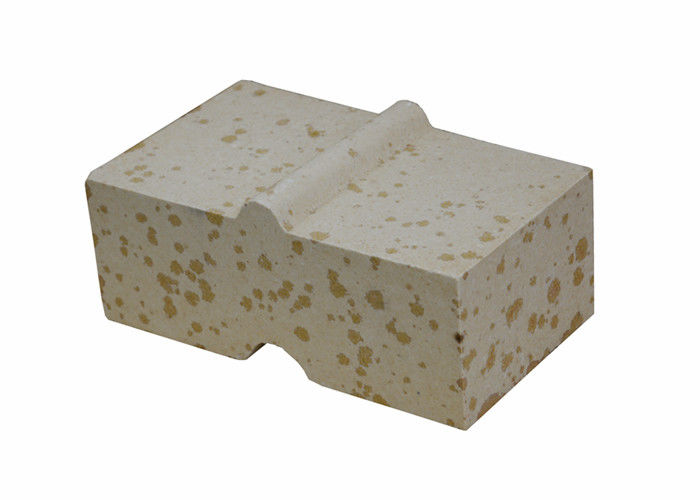

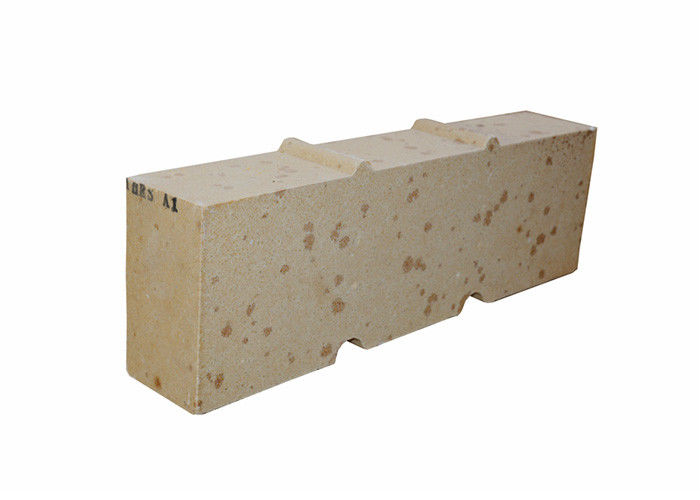

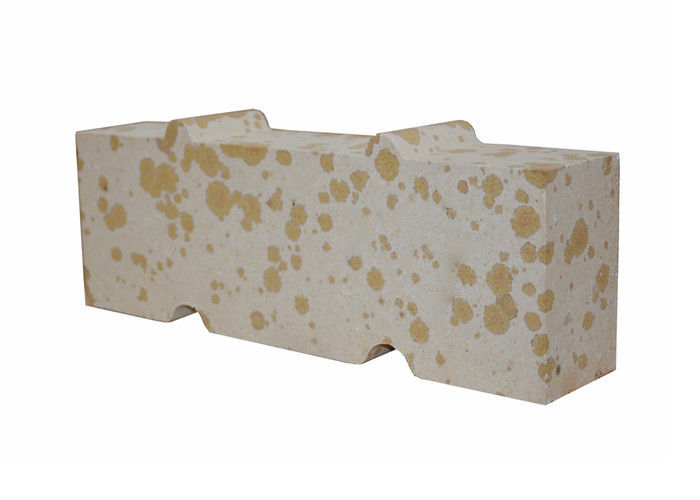

High Softening Point Yellow 1.78g Alumina Silicate Brick
Introduction:
High Softening Point Silica Special Refractory Brick mineralizer. High Softening Point Silica Special Refractory Brick ' mineral composition includes tridymite, ashlar and vitric formed in high temperature.
| Item Index |
Silica Brick for Coke Oven | Silica Brick for hot-blast Stove |
| Brand | NCSB-94 | NCSB-95 |
| SiO2 % ≥ | 94.5 | 95.0 |
| Al2O3 % ≤ | 1.5 | 1.0 |
| Fe2O3 % ≤ | 1.5 | 1.3 |
| CaO % ≤ | 2.5 | -- |
| Na2O+K2O% ≤ | -- | -- |
| True Density≤ g/cm3 | 2.33 | 2.32 |
| Apparent.Porosity.% ≤ | 23 | 22 |
| Cold.Crushing.Strength(Mpa)≥ | 40 | 45 |
| Permanent Linear Change%≤ | 0~-0.2 | 0~-0.2 |
| Refractoriness Under Load 0.2Mpa ºC ≥ |
1650 | 1650 |
| Thermal Expansion Rate at 1000C % ≤ |
1.28 | 1.25 |
• Industrial furnace, glass furnace
• Chemical industrial furnace
• Utility industry furnace lining
• Heat insulation ventilation wall
