High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns

High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns
High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns

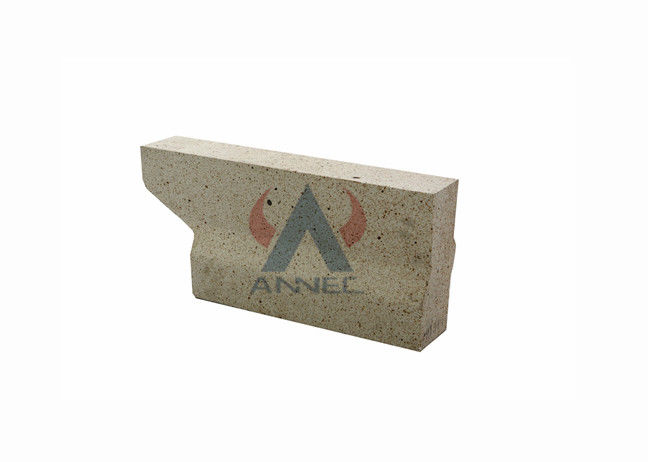

Large Image :  High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns

Product Details:
Place of Origin: CHINA
Brand Name: ANNEC
Certification: ISO,CE
Model Number: HA60
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: usd1.6-2.5/pcs
Packaging Details: conform to exporting packing
Delivery Time: 5-8 working days
Payment Terms: D/P, T/T
Supply Ability: 5000 pcs

High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns

Description
Raw Material: Andalusite From South African Al2O3: ≥55%
Fe2O3: ≤1.5% Application Temperature: ≥1400℃
Bulk Density: ≥2.45g/cm3 Apparent Porosity: ≤23%
CCS: ≥55Mpa Refractoriness: ≥1500℃

High Alumina Andalustie Based Brick

Data

Item Chemical Composition
Al2O3% ≥ 58 57 56 55
SiO2% ≤ 38 40 40 41
Fe2O3% ≤ 0.8 0.8 1 1.2
K2O % ≤ 0.077 0.12 0.16 0.16
NaO % ≤ 0.44 0.52 0.56 0.56
Reheating Linear Change% ≤ 0.52 0.52 0.52 0.52
refractoriness≥ C 1830 1790 1790 1790



High Alumina Andalustie Based Brick is an ideal insulating refractory refractory material, with advantages of high strength, low thermal conductivity, good insulation property and low price. For various industrial kilns & furnaces, it is a kind of essential refractory for energy saving and temperature preservation.
High Alumina Andalustie Based Brick is also called high alumina insulating brick. It contains more than 48% Ai2O3 and mainly consists of mullite and glass phase or corundum. It is usually made of high bauxite and a small amount of clay. After the raw materials are grounded, it is made into mud. Then it is cast and molded and fired at 1300~1500℃. Sometimes industrial alumimum is used to replace bauxite. Inorganic matter is added as ignition loss substance in order to increase the porosity of the refractory.



The production process of High Alumina Andalustie Based Brick and multi-clinker clay bricks are similar.

The difference is that the proportion of clinker in the ingredients is higher, which can be as high as 90-95%.

The clinker needs to be sorted and sieved to remove iron before crushing, and the firing temperature Higher, such as Ⅰ, Ⅱ high alumina bricks are generally 1500~1600℃ when fired in tunnel kiln.



Production practice in China has proved that before crushing, high-aluminum clinker is strictly sorted and classified, and stored in tiers.

The use of bauxite clinker and combined clay fine grinding method can improve product quality.





Production process:


The production methods of High Alumina Andalustie Based Brick and clay bricks are basically the same.



Only some process parameters are different. There are also processes such as crushing → mixing → molding → drying → firing → inspection → packaging.


Production practice proves that high-alumina clinker is strictly selected and classified before crushing, and is stored in tiers. The co-fine grinding method of bauxite clinker and combined clay can improve the quality of high-alumina refractory brick



Aluminum oxide (Al2O3) content is higher than 48% High Alumina Andalustie Based Brick

A neutral refractory with an alumina content of more than 48%.Made of bauxite or other raw materials of high alumina content after molding and calcining.High thermal stability, refractoriness in 1770℃ above.Good slag resistance, used for lining steelmaking electric furnace, glass furnace, cement converter, etc.



High charge soft, High Alumina Andalustie Based Brick is a high grade refractory material made of super grade bauxite, fused corundum and fused mullite.







Feature
1. Good Cold Crushing Strength
2. High Refractoriness Under Load
3. Good Thermal Shock Resistance
4. Low Reheating Linear Rate



Applications:

1. Furnaces of metallurgy industry, heat treatment furnace
2. Furnaces of chemical industry and construction industry.
3. Furnace of incineration of garbage, recirculating fluidized bed furnace
Standard sizing: 230 x 114 x 65 mm others up to the client



High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns 0High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns 1High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns 2High Alumina Andalustie Based Brick Resist High Temperature And Used As Saftey Lining In High Temperature Stove, Kilns 3
