Product Details:
|
Raw Material: | Silica Sand | Al2O3: | ≤1.0% |
---|---|---|---|
SiO2: | ≥95% | Fe2O3: | ≤1.0% |
Apparent Porosity: | ≤23% | Bulk Density: | ≥1.8g/cm3 |
CCS: | ≥35Mpa | RUL: | ≥1650℃ |
High Light: | 1620C Silica Refractory Bricks,1670C Silica Refractory Bricks,1620C Ceramic Kiln Refractory Bricks |

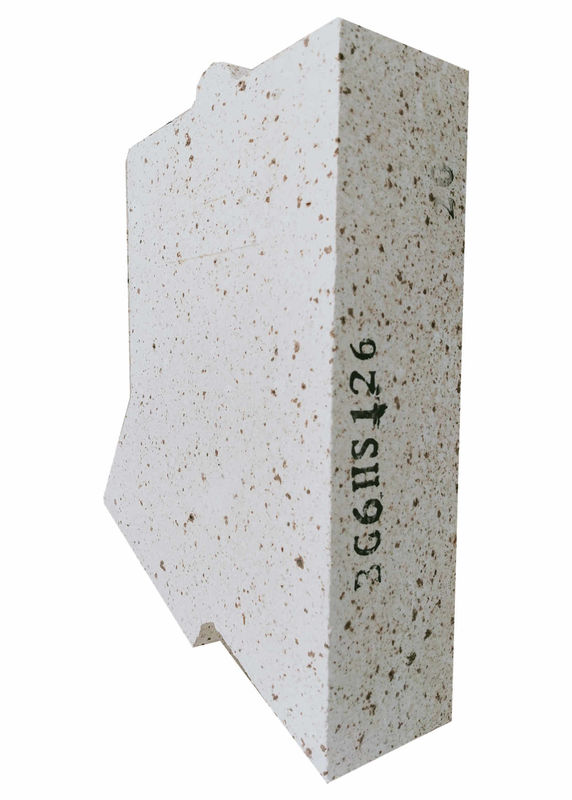

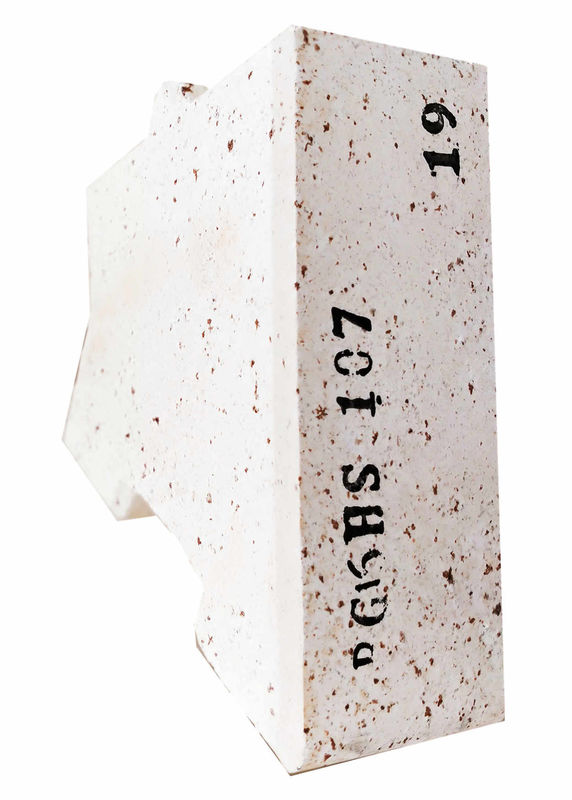

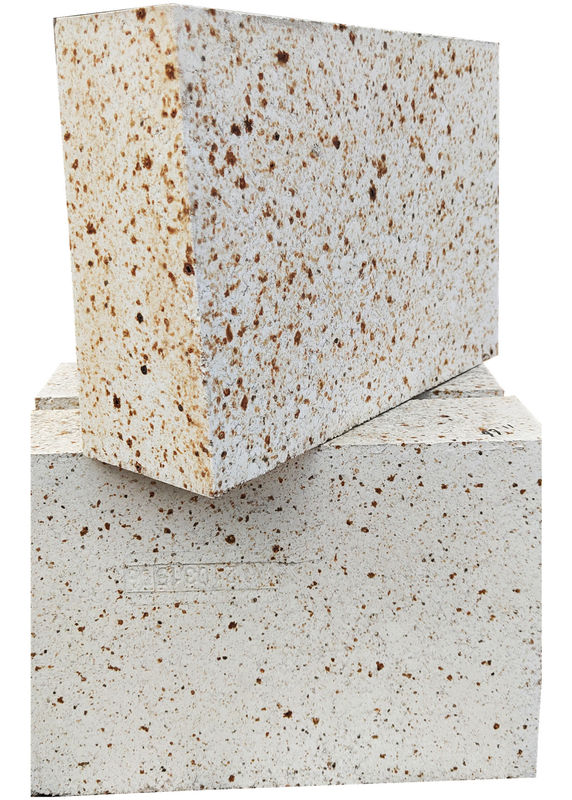

High Strength Ceramic Kiln 1620C / Excellent fire resistant silica Refractory Bricks
Description:
High Strength Ceramic Kiln 1620C / Excellent fire resistant silica Refractory Bricks generally use crystalline quartzite or silica sand as raw materials, and the mineral composition is: phosphorite 78% to 86%, cristobalite 13% to 15%, and quartz 4% to 7%. Add combustible materials to the ingredients, such as coke, sawdust, anthracite, carbonized rice husk, or use gas foaming to form a porous structure. Silicone heat-insulating refractory bricks are heat-insulating silicon refractory products with a SiO2 content of more than 90% and a bulk density of less than 1.2. The refractoriness and softening temperature under load are not much different from ordinary silica bricks with the same composition. However, due to the many pores, the compressive strength, slag resistance, and corrosion resistance are not as good as ordinary silica bricks, but the thermal shock resistance has been improved.
High Strength Ceramic Kiln 1620C / Excellent fire resistant silica Refractory Bricks have the characteristics of low thermal conductivity, high load softening temperature, small residual expansion, and excellent reburning line change performance. They are suitable for industrial furnaces such as coke ovens, hot blast furnaces, glass furnaces and carbon furnaces. It is mainly used for the heat insulation layer and working layer of thermal equipment, and can be used for the heat insulation layer of various high temperature kiln equipment under high temperature conditions (≤1500℃) without contact with molten slag. This product is suitable for the heat insulation material of the silica brick lining of the high temperature hot blast stove of the large blast furnace and the heat insulation of the silica brick masonry of the glass furnace.
Item | Chemical Composition |
SiO2 | ≥95% |
Al2O3 | ≤1.0% |
Fe2O3 | ≤1.0% |
Apparent porosity | ≤23% |
CCS | ≥35Mpa |
RUL | ≥1650℃ |
Features
1. Good acid and erosion resistance, powerful anti high-temperature strength.
2. Soften melting temperature is 1620~1670 °C.
3. Low thermal shock resistance.
4. Natural silica as raw material, plus regular mineralizer.
5. Ensure good bonding and structural strength of furnace.
6. Good heat resistance and long service life.
Application
1). Gas cooker,Water heater,Gas oven, Gas boiler,Air-conditioning and so on.
2). As ceramic parts of flexible pad and channel heaters at operations of pre and postweld heat treatment; Welding process, stress-relieving, pre-heating & post heating, other resistance-heating environment
3). halogen lamps, high and low pressure uv lamps, mercury lamps, uv lamp holders and heating tubes.
4). high-power electrical applicance and all kinds of insulation device.
