Place of Origin:
China
Brand Name:
Annec
Model Number:
JG-1/JG-2

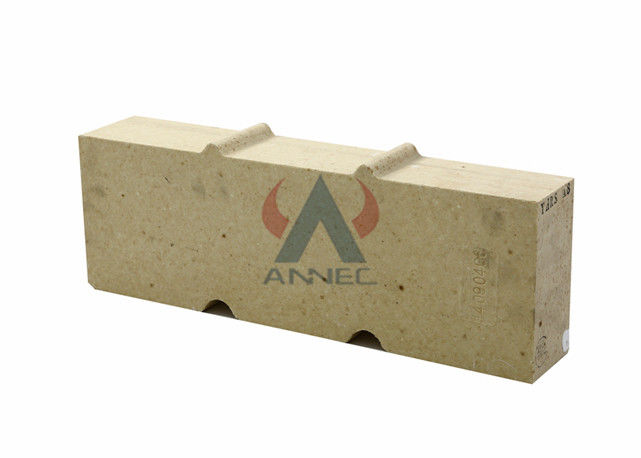

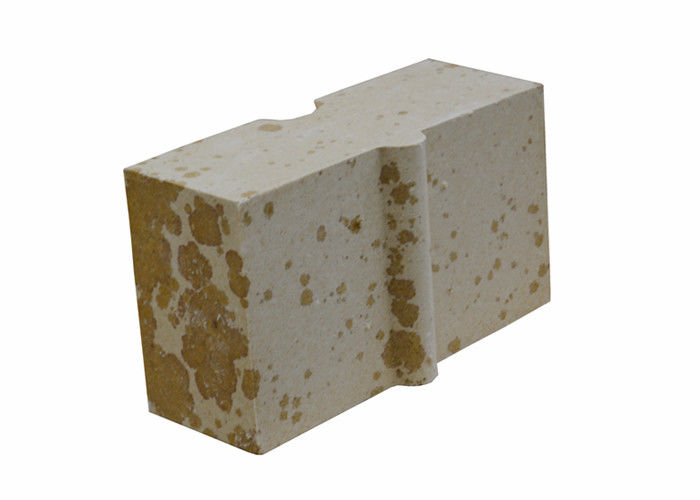

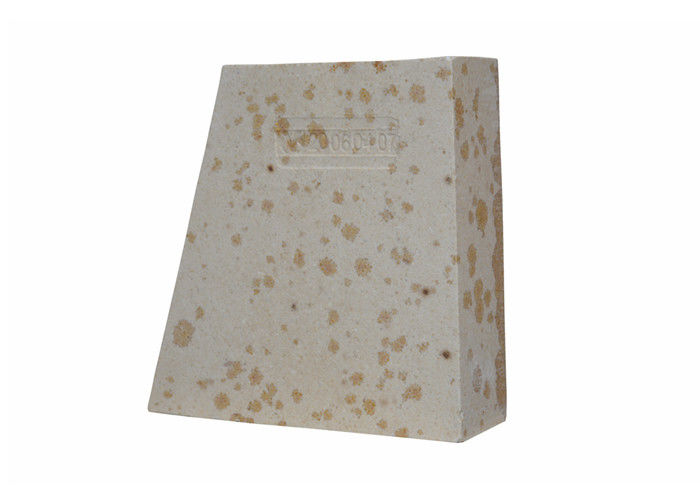

Glass Furnace 1710 Degree Acidproof Silica Refractory Bricks
Standard sizing:This brick is special size for pipes of industry furance ,Special size and OEM Service also provide!
The size is precise, providing kinds of shapes according to customer's drawing
Definition:
Acid Proof Silica Refractory Block is made of quartz stone material, the content of SiO2 is above 93%. It has good resistance to acid slag and good heat conductivity. And the refractoriness is 1690~1710°C, RUL is beyond 1620°C.
SiO2 has different types of crystals in different temperatures, and the transform between the crystals will cause the change of the bulk. So there is a close contact between the changes of SiO2 crystals and the produce, performance and usage of silica bricks. During the heating, there will be changes of the bulk, and cristobalite changes most, then quartz, phosphorus quartz is the slowest of all and it also has good heat-conductivity.Coke oven should use the silica brick with small true density. And the phosphorus quartz is better than others.
Advantage:
(1) Refractoriness under load:
The refractoriness under load of Acid Proof Silica Refractory Block is higher than that of clay brick and high aluminum brick, reaching 1640 ~ 1670℃, which belongs to advanced refractory materials.
(2) Thermal conductivity:
Acid Proof Silica Refractory Block has better thermal conductivity than clay brick and high aluminum brick
Application:
Acid Proof Silica Refractory Block is mainly used for the partition of coking chamber and combustor of coke making furnace, regenerator chamber and cinder chamber of steelmaking open hearth furnace, soaking pit, refractory material of glass melting furnace and sintering furnace of ceramics and other kiln vault and other load-bearing parts.
It is also used for high temperature load bearing parts of hot blast furnace and acid open hearth furnace top.
Product Description:
| Acid Proof Silica Refractory Block | ||||
| Item | Unit | RG-95 | JG-1 | JG-2 |
| SiO2 | % | ≥95 | ≥94.5 | ≥94.5 |
| Al2O3 | % | ≤1.0 | ≤1.5 | ≤1.5 |
| Fe2O3 | % | ≤1.3 | ≤1.5 | ≤1.5 |
| CaO | % | - | ≤2.5 | ≤2.5 |
| Apparent Porosity | % | ≤22(24) | ≤22 | ≤24 |
| Bulk Density | g/cm3 | ≤2.32 | - | - |
| Ture Bulk Density | g/cm3 | - | ≤2.33 | ≤2.34 |
| Cold Crushing Strength | Mpa | ≥45(35) | ≥40 | ≥35 |
| Residual Quartz | % | ≤1.0 | ≤1.0 | ≤1.0 |
| Refractoriness under load, T0.6 | ℃ | ≥1650 | ≥1650 | ≥1650 |
| Creep Rate(1550℃X50h ,0.2MPa) | % | ≤0.8 | - | - |
| Thermal conductivity,1000℃ | % | ≤1.25 | ≤1.28 | ≤1.3 |
| Linear Change on Reheating(1450℃×2h) | % | - | 0~0.3 | 0~0.3 |
