Place of Origin:
China
Brand Name:
Annec
Definition:

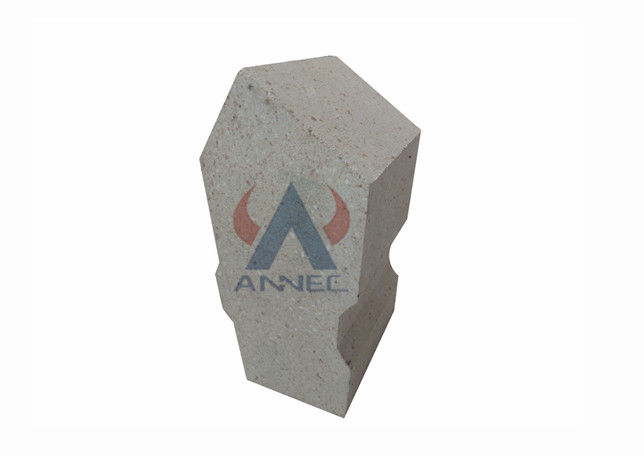

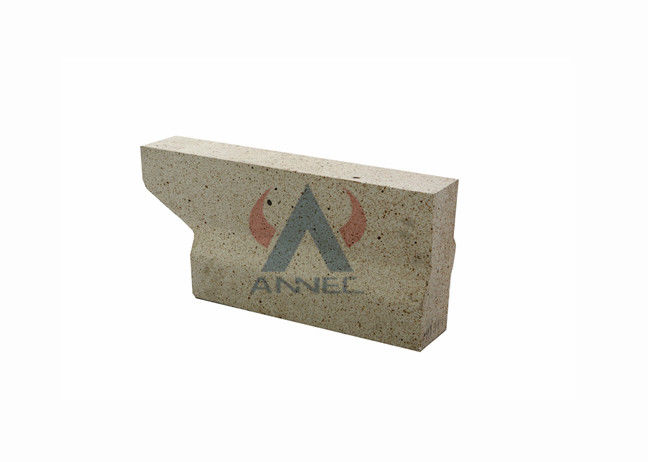

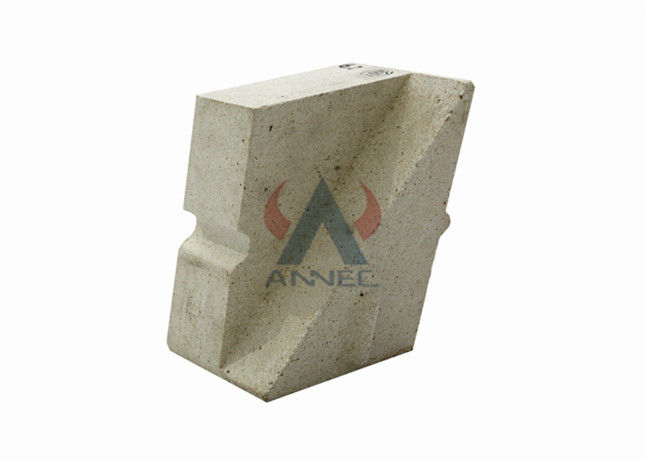

Aluminum Silicate Refractory Brick the main chemical components: Al2O3 content is 30%-48%, SiO2 content is 50%-65%, and a small number of alkali metals, alkaline earth metal oxides, etc. Mineral composition is usually mullite, quartz and glass phase. Its refractoriness is 1580-1750℃, refractoriness under load is 1250-1450 ℃, line expansion coefficients is low, with good thermal shock resistance and strong ability to resist erosion acid slag.
Aluminum Silicate Refractory Brick is a neutral refractory with alumina content above 48%.
It is formed by calcining alumina and other raw materials with high alumina content. High thermal stability, fire resistance above 1770℃. It has good slag resistance and is used for lining steel-making electric furnaces, glass melting furnaces, cement rotary furnaces, etc.
High-load soft, low-creep high-alumina brick is a high-grade refractory material made of super-grade alumina, fused corundum, and fused mullite as the main raw materials.
This product has the advantages of low temperature creep, strong corrosion resistance and good thermal shock stability.
It is suitable for large and medium-sized hot blast stoves. It opens up the next article for the localization of high-quality and high-grade imported refractory materials required by China's new hot blast stoves. The road to success has been included in the national "Spark Project" project.
Advantage:
1. Good thermal shock stability,
2. High temperature mechanical strength;
3. High softening temperature under load,
4. Good slag resistance and alkali salt resistance
Application:
•Industrial furnace, glass furnace
• Chemical industrial furnace
• Utility industry furnace lining
• Heat insulation ventilation wall
Product Description:
| Aluminum Silicate Refractory Brick | ||||||||
| Item | Unit | DRL-155 | DR-150 | DRL-145 | DRL-140 | DRL-135 | DRL-130 | DRL-127 |
| Al2O3 | % | ≥75 | ≥75 | ≥65 | ≥65 | ≥65 | ≥60 | ≥50 |
| Apparent Porosity | % | ≤20 | ≤21 | ≤21 | ≤22 | ≤22 | ≤22 | ≤23 |
| Bulk Density | % | 2.65~2.85 | 2.65~2.85 | 2.5~2.7 | 2.4~2.6 | 2.35~2.55 | 2.3~2.5 | 2.3~2.5 |
| Cold Crushing Strength | Mpa | ≥60 | ≥60 | ≥60 | ≥55 | ≥55 | ≥55 | ≥55 |
| Creep Rate(0~50h ,0.2MPa) | % | 1550℃ 0.8 |
1500℃ 0.8 |
1450℃ 0.8 |
1400℃ 0.8 |
1350℃ 0.8 |
1300℃ 0.8 |
1270℃ 0.8 |
| Linear Change on Reheating | % | 1550℃×2h 0.1 ~ -0.2 |
1550℃×2h 0.1 ~ -0.2 |
1550℃×2h 0.1 ~ -0.2 |
1450℃×2h 0.1 ~ -0.2 |
1450℃×2h 0.1 ~ -0.4 |
1450℃×2h 0.1 ~ -0.4 |
1450℃×2h 0.1 ~ -0.4 |
Why choose us
Q: Are you trading company or manufacturer?
A: We are Manufacturer of refractory materials that have 4 plants in China; So we can provide you with high quality products at more competitive prices. we can provide you professional solutions about your problems. Although our salesman cannot reply you immediately, pls leave your email or phone number, we can let our technician directly help you ASAP.
Q: Do you accept OEM?
A: Sure, we can do OEM for much kind of brick.
Q: What information do we need to provide?
A: If you are clear about the products you purchased, please send us the brick drawings, index(include chemical and physical indicators )and order quantity.
If you are not familiar with it, please tell us the usage and working temperature, we will recommend the product to you.
Q: How long is delivery time?
A: The delivery time will be determined according to the quantity of the order. Our monthly output is 12000tons. We have good connection with shipping company, agency, as well as the local custom and port authority. making sure we deliver on time.
Q: When can I get the price?
A: We usually quote within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.
Q:What is the HS code?
A:The HS code is 69022000.
Q:Is there any cost for the sample?
A: We provide free sample(Less 3 pcs) but don't bear the freight.
Q: What is the Warranty for the fire brick?
A: For all the brick, we have 1 years warranty. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.
What you will get from us is our best profession in service and the hospitality that you are willing to become our Friend.
So choosing us is the right choice for you. If you are interested in our products or if you have any question, pls feel free to contact us at any time. We will reply as soon as possible.
