Place of Origin:
China
Brand Name:
Annec
Certification:
ISO
Model Number:
RN-42

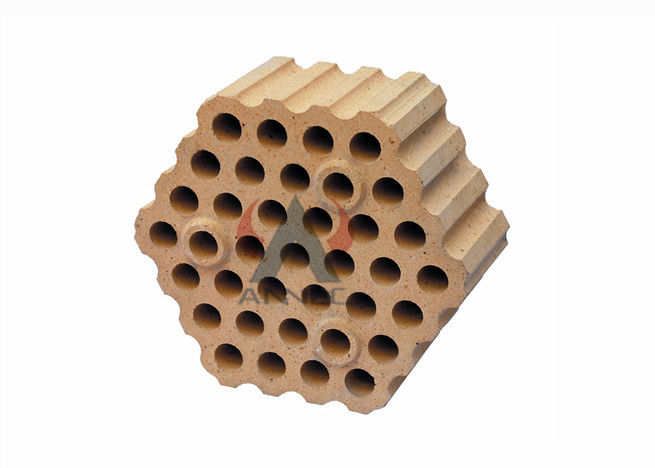

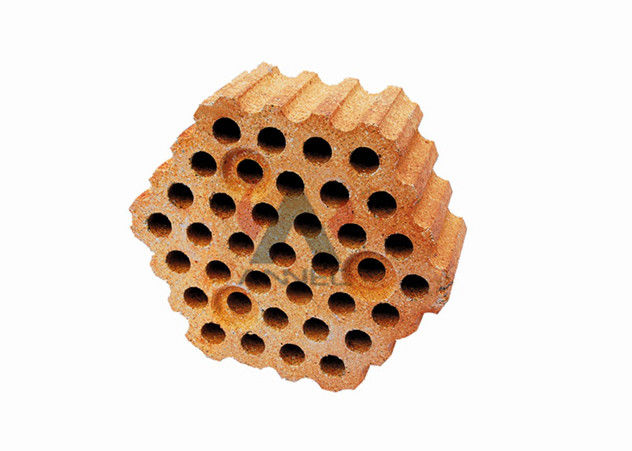

High Temperature Insulation 1750℃ OEM Clay Refractory Brick
Standard sizing:37 holes (φ20) checker brick ,Special size and OEM Service also provide!
The size is precise, providing kinds of shapes according to customer's drawing
Definition:
Clay Fired Refractory Checker/Chequer Brick is made from clinker clay by mixing, forming, drying, sintering and matching characterized by good resistance to corrosion and abrasion, good thermal shock resistance, good spelling resistance, high mechanical strength, good volume stability under high temperature.
The Clay Fired Refractory Checker/ Chequer Brick can be divided into three process: Raw material, molding, burning.Generally, refractory brick was molded by dry pressing. By means of mixing the material uniformity in proportion and aging mixture some time. Then, pour some powders into the module and dry pressing. After dry pressing, the adobe need to pushed in the drying kiln to stoving or stay in the air to drying. This progress will need about 3-5 days. After this progress, then push the adobe into the tunnel furnace or shuttle kiln to burning around 1300C. This progress will be need about 5-7 days.
After burning, the brick will be packed in pallet and leave the factory.
We could provide high temperature solutions and professionals construction services for different fields for our customers. Provide the most reasonable logistics for customers to save every penny. Production of goods are finished, thoughtful provide products and packaging photos for our customers.
Advantage:
1. High refractoriness,
2. High-temperature endurable.
3. Good corrosion resistance.
4. Good spalling resistance and wear resistance.
5. Good thermal shock resistance.
6. High mechanical strength.
7. High-temperature creep rate is low.
8. Good volume stability at high temperature.
Application:
Clay Fired Refractory Checker/Chequer Brick can be used to furance contruction,blast furance/hot blast stove,steel foundries,furnace in the nonferrous metal industry,coke oven and gas furnace,galss industry,cement industry,safty lining of ladle and backup lining of boiler
Product Description:
Clay Fired Refractory Checker/Chequer Brick | ||
Mark | Unit | RN-42 |
Al2O3 | % | ≥42 |
Refractoriness | ℃ | ≥1750 |
Apparent porosity | % | ≤24 |
Bulk density | g/cm3 | ≥2.3 |
Cold crush strength | Mpa | ≥29.4 |
0.2MPa, Refractoriness under load | ℃ | ≥1400 |
Permanent linear change 1450℃X2hm |
% | 0.1~-0.4 |
Packaging and shipping
Standard packing: waterproof inner packing + outer packing suitable for container transportation
Why choose us
Q: Are you trading company or manufacturer?
A: We are Manufacturer of refractory materials that have 4 plants in China; So we can provide you with high quality products at more competitive prices. we can provide you professional solutions about your problems. Although our salesman cannot reply you immediately, pls leave your email or phone number, we can let our technician directly help you ASAP.
Q: Do you accept OEM?
A: Sure, we can do OEM for much kind of brick.
Q: What information do we need to provide?
A: If you are clear about the products you purchased, please send us the brick drawings, index(include chemical and physical indicators )and order quantity.
If you are not familiar with it, please tell us the usage and working temperature, we will recommend the product to you.
Q: How long is delivery time?
A: The delivery time will be determined according to the quantity of the order. Our monthly output is 12000tons. We have good connection with shipping company, agency, as well as the local custom and port authority. making sure we deliver on time.
Q: When can I get the price?
A: We usually quote within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.
Q:What is the HS code?
A:The HS code is 69022000.
Q:Is there any cost for the sample?
A: We provide free sample(Less 3 pcs) but don't bear the freight.
Q: What is the Warranty for the fire brick?
A: For all the brick, we have 1 years warranty. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.
What you will get from us is our best profession in service and the hospitality that you are willing to become our Friend.
So choosing us is the right choice for you. If you are interested in our products or if you have any question, pls feel free to contact us at any time. We will reply as soon as possible.
