Place of Origin:
China
Brand Name:
Annec
Certification:
ISO
Definition:

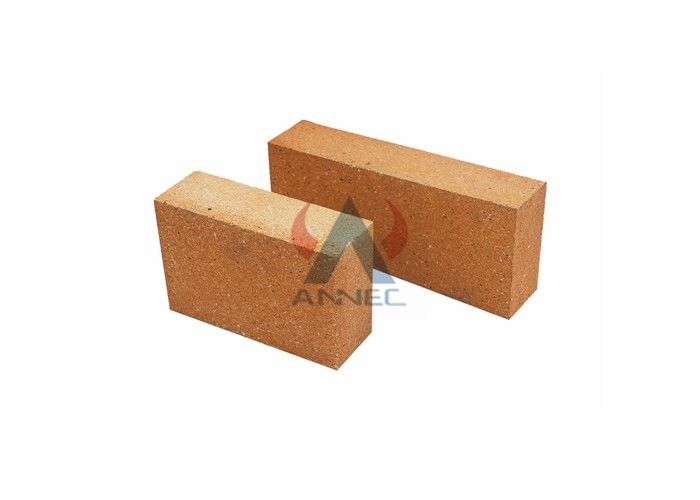

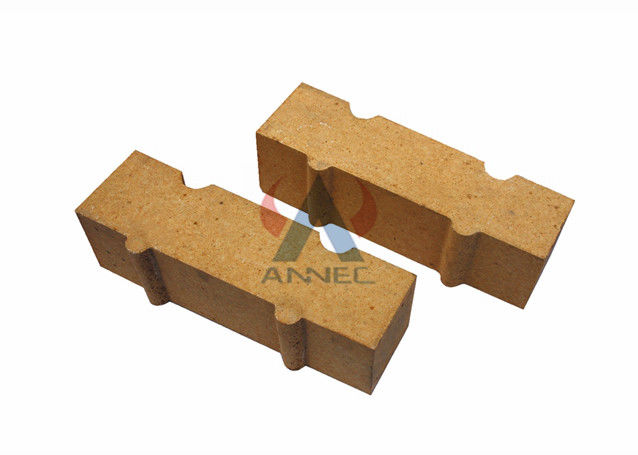

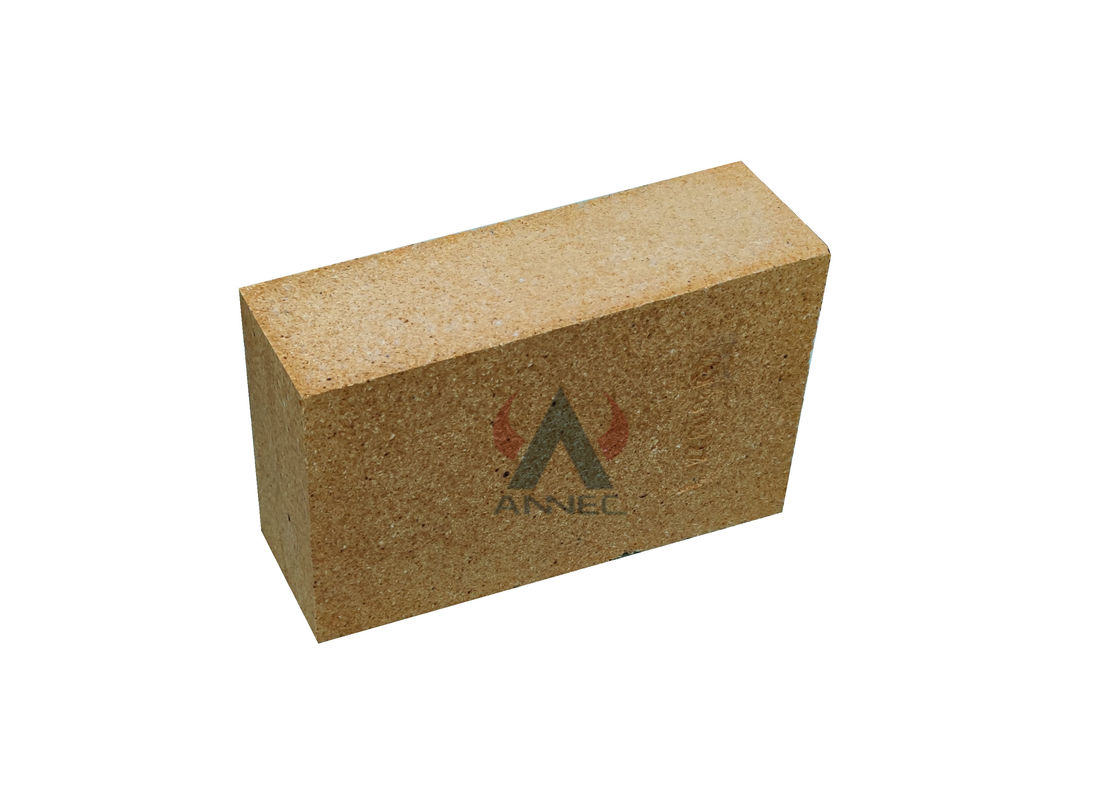

Special Shaped Clay Fired Brick is matching characterized by good resistance to corrosion and abrasion, The advantage are good thermal shock resistance, good spelling resistance, high mechanical strength, good volume stability under high temperature.
The mineral composition of Special Shaped Clay Fired Brick is mainly kaolinite (Al2O3·2SiO2·2H2O) and 6% to 7% impurities (oxides of potassium, sodium, calcium, titanium, and iron). The firing process of Special Shaped Clay Fired Brick is mainly the process of continuous dehydration and decomposition of kaolin to form mullite (3Al2O3·2SiO2) crystals. The SiO2 and Al2O3 in the clay brick form eutectic low-melting silicate with impurities during the firing process, which surrounds the mullite crystals.
Special Shaped Clay Fired Brick can resist the erosion of acidic slag and acidic gas, and have a slightly weaker resistance to alkaline substances. Clay bricks have good thermal properties and are resistant to rapid cold and rapid heat.
Advantage:
Lower thermal conductivity
Lower bulk density
Light weight character
Lower creep rate in high temp
Good thermal shock resistance performance
Higher temperate resistant with good refractoriness
Application:
Iron&steel making industry:Blast furnace,hot blast furnace(stove),pellet shaft furnace,hot metal ladle,steel ladle, tundish,heating furnace,soaking pit furnace,heat treatment furnace,refining furnace,reheating furnace,metal mixter furnace,annealing furnace, cupola furnace,electric arc furnace,induction furnace,AOD furnace,VOD furnace,etc thermal technology equipment.
Non-ferrous Metal industry:Smelting furnace,refining furnace,reverberatory furnace,converter furnace.
Building materials industry:Cement kiln,glass kiln,ceramic kiln,lime kilns,kiln car,tunnel kiln
Energy & Incineration:Coke oven,general boiler,power,generation,boiler,circulating fluidized bed boiler,electric furnace,carbon rosating furnace,waste incinerators.
Others:Petrochemical industry furnace.
Product Description:
| Fired Clay Refractory Assembly Brick | ||||
| Item | Unit | RN-42 | HRN-42 | HRN-48 |
| AL2O3 % | % | ≥42 | ≥42 | ≥48 |
| Fe2O3 % | % | ≤ 1.7 | ≤ 1.7 | ≤ 1.7 |
| Refractoriness | ℃ | ≥1750 | ≥1750 | ≥1750 |
| Bulk density | g/cm3 | ≥2.15 | ≥2.15 | ≥2.35 |
| Apparent porosity | % | ≤ 24/23 | ≤ 24/21 | ≤ 24/21 |
| cold crushing strength | Mpa | ≥30 | ≥40 | ≥40 |
| 0.2MPa,Refractoriness under load,℃ | ℃ | ≥ 1400 | ≥ 1520 | ≥ 1550 |
| Permanent linear change | % | 0～-0.3 | 0～-0.3 | 0～-0.3 |
| thermal shock resistance, ( 1100 ℃ water ) |
cycle | ≥ 20 | ≥30 | ≥40 |
Standard packing: waterproof inner packing + outer packing suitable for container transportation
