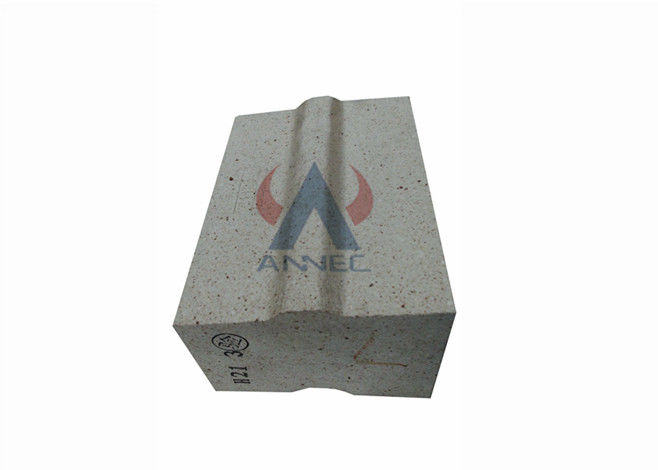

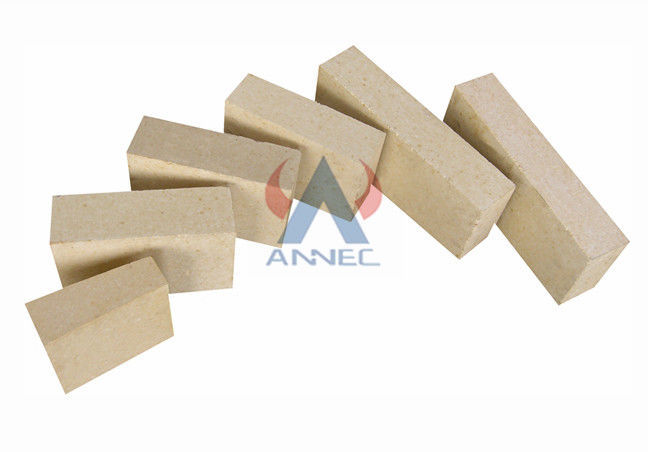

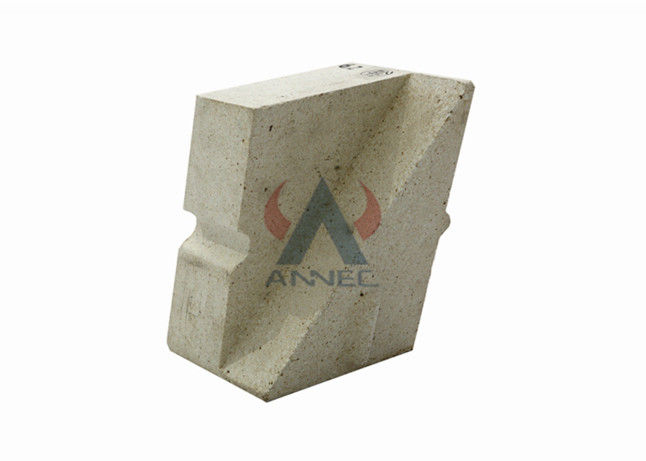

Dry Pressed 68% Al2O3 35% SiO2 High Alumina Refractory Bricks

Dry Pressed 68% Al2O3 35% SiO2 High Alumina Refractory Bricks

35% SiO2 High Alumina Refractory Bricks

68% Al2O3 High Alumina Refractory Bricks

Dry Pressed Alumina Refractory Bricks

Place of Origin:

CHINA

Brand Name:

ANNEC

Certification:

ISO, CE

Model Number:

DRL-145

Contact Us
Request A Quote
Product Details
Al2O3:
≥68%
Bulk Density:
≥2.4g/cm3
Apparent Porosity:
≤23%
CCS:
≥50Mpa
Refractoriness:
≥1790℃
Refractoriness Under Load:
≥1450℃
Application:
Industrial Furnaces
SiO2:
15-35%
Highlight:

35% SiO2 High Alumina Refractory Bricks

,

68% Al2O3 High Alumina Refractory Bricks

,

Dry Pressed Alumina Refractory Bricks

Payment & Shipping Terms
Minimum Order Quantity
100PCS
Price
USD 2/PCS
Packaging Details
fumigating pallet
Delivery Time
5-7 working days
Payment Terms
L/C, T/T
Supply Ability
100,000 pcs/day
RELATED PRODUCTS
Contact Us
86-0371-69938888
Contact Now
Product Description

Dry Pressed 68% Al2O3 35% SiO2 High Alumina Refractory Bricks

High Thermal Resistance High Alumina Fire Bricks​ is widely used in lots of industry, such as metallurgical industry, like hot blast stove and blast furnace for Iron-making, lime kiln for production of lime, and rotary kiln and reheating stoves etc.
High Thermal Resistance High Alumina Fire Bricks​​ can work even on1500 ℃ high temperature as well as keep good state, it also can resist compressive strength of more than 80Mpa, along iwth more than 30 times shock resistance (water cooling).


High Thermal Resistance High Alumina Fire Bricks​​
Data

ItemChemical Composition
Al2O3≥68%
Fe2O3≤2%
Bulk density≥2.4g/cm3
Apparent porosity≤23%
CCS≥50Mpa
Refractoriness≥1790℃
Refractoriness under load≥1450℃



High Thermal Resistance High Alumina Fire Bricks​​ are produced with selected bauxite chamotte by advanced process and strict quality control. The main mineral components are corundum and mullite phases. Its features are excellent high temperature mechanics and chemical corrosion resistance.



It is called corundum brick,if Al2O3 content is higher than 90%, . Due to different resources, national standards are not completely consistent.  In China, according to the content of Al2O3 in High Thermal Resistance High Alumina Fire Bricks​​ , it is usually divided into three grades: Grade I──Al2O3 content>75%; Grade II──Al2O3 content is 60~75%; Grade III──Al2O3 content is 48~60%.



The production process of High Thermal Resistance High Alumina Fire Bricks​ and multi-clinker clay bricks also the same.

The difference is that the proportion of clinker in the ingredients is higher, which can be as high as 90-95%.

The clinker needs to be sorted and sieved to remove iron before crushing, and the firing temperature Higher, such as Ⅰ, Ⅱ high alumina bricks are generally 1500~1600℃ when fired in tunnel kiln.


Feature
1. Good Cold Crushing Strength
2. High Refractoriness Under Load
3. Good Thermal Shock Resistance
4. Low Reheating Linear Rate



Applications:

1. Furnaces of metallurgy industry, heat treatment furnace
2. Furnaces of chemical industry and construction industry.
3. Furnace of incineration of garbage, recirculating fluidized bed furnace
Standard sizing: 230 x 114 x 65 mm others up to the client

Dry Pressed 68% Al2O3 35% SiO2 High Alumina Refractory Bricks 0
