Place of Origin:
China
Brand Name:
ANNEC
Certification:
ISO, CE
Model Number:
DRL-130

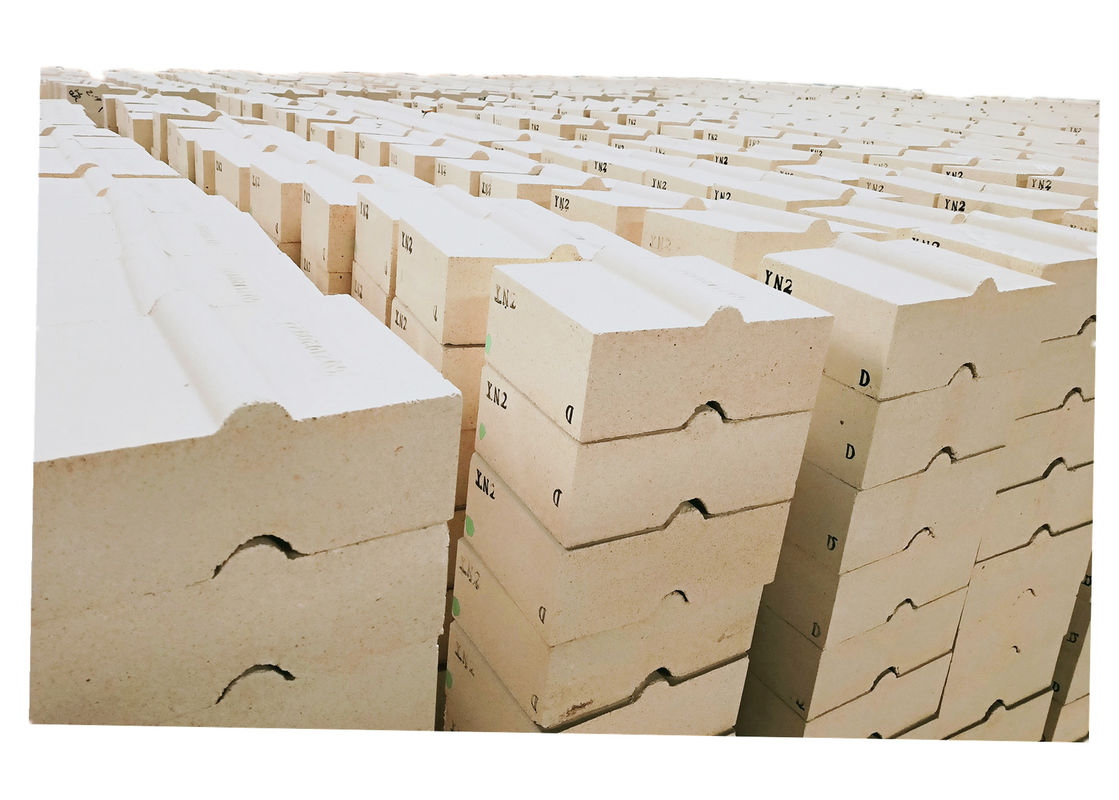

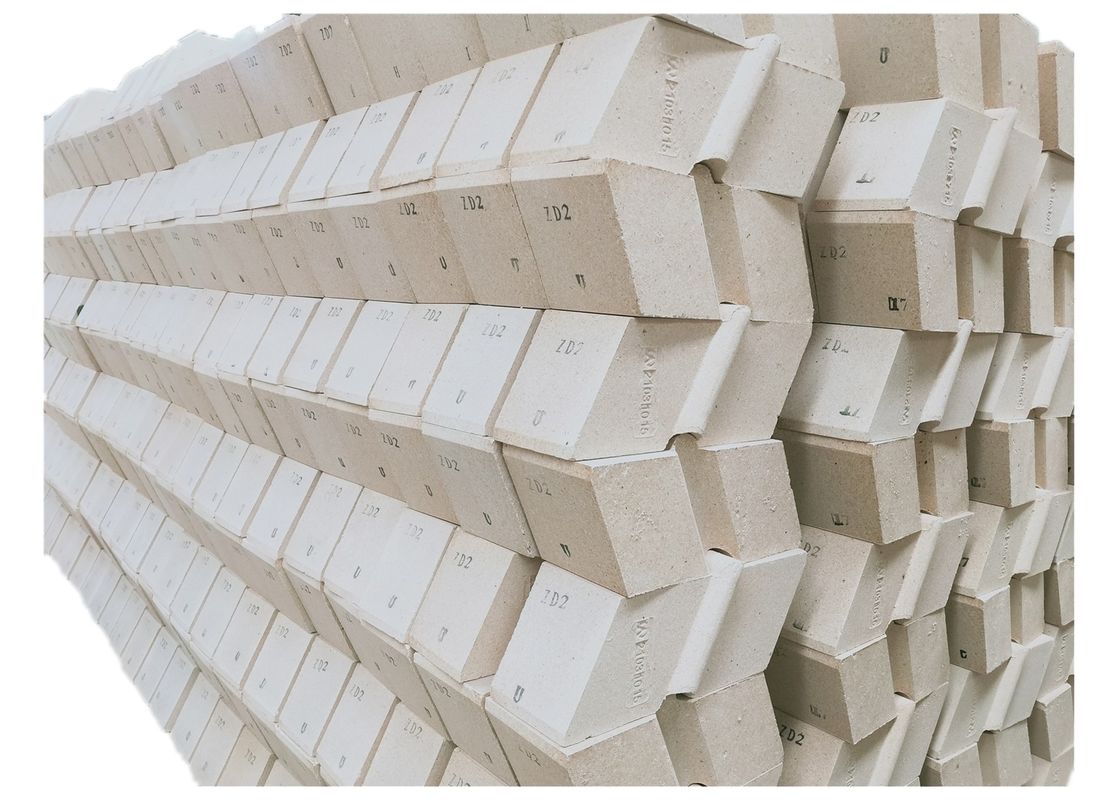

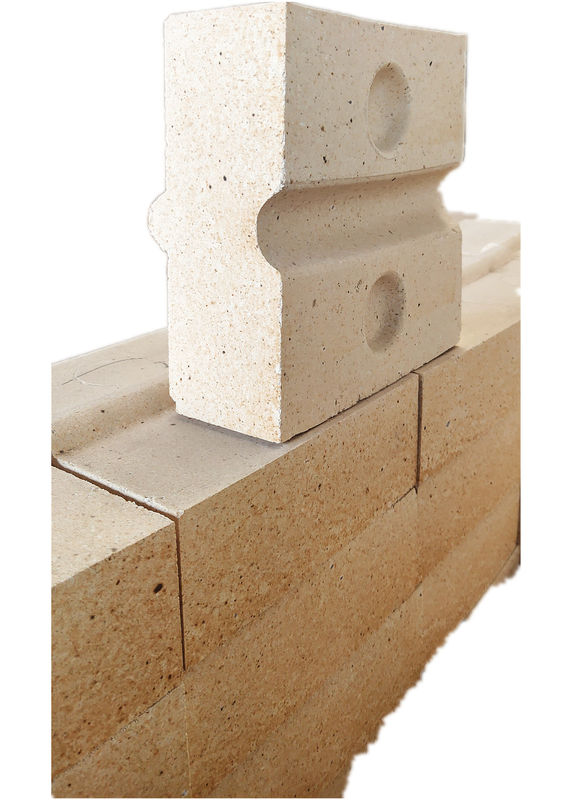

Low Reheating Linear Rate Fire Brick is an ideal insulating refractory refractory material, with advantages of high strength, low thermal conductivity, good insulation property and low price. For various industrial kilns & furnaces, it is a kind of essential refractory for energy saving and temperature preservation.
Low Reheating Linear Rate Fire Brick is also called high alumina insulating brick. It contains more than 48% Ai2O3 and mainly consists of mullite and glass phase or corundum. It is usually made of high bauxite and a small amount of clay. After the raw materials are grounded, it is made into mud. Then it is cast and molded and fired at 1300~1500℃. Sometimes industrial alumimum is used to replace bauxite. Inorganic matter is added as ignition loss substance in order to increase the porosity of the refractory.
Company Profile
Zhengzhou Annec CO., Ltd. was founded in 2003, and has been a NASDAQ listed corporation since 2011 with ticker identification ANNC. Annec had become the industrial leader within China in the areas of refractory production, Engineering for hot blast stove of blast furnace, and capability for EPC project. Annec has its own Provincial Enterprise Technology Center and Top Combustion Hot Blast Stove Research Centre, Annec (Beijing) Engineering & Technology Co., Ltd and four Manufacturers for Refractories. The annual output of different type of refractories can reach 150 thousand tons, and undertaken capability of more than 10 turnkey projects for hot blast stove.
Data
| Item | Chemical Composition |
| Al2O3 | ≥60% |
| Fe2O3 | ≤2% |
| SiO2 | ≤30% |
| Bulk density | ≥2.4g/cm3 |
| Apparent porosity | ≤23% |
| CCS | ≥55Mpa |
| Refractoriness | ≥1790℃ |
| Refractoriness under load | ≥1480℃ |
1. Made by bauxite clinker and binder through Crushing,Mixing,Shaping,Drying and high temperature Sintering.
2. Al2O3 content is 48%-80%,main mineral components are corundum and mullite phases.
3. Refractoriness is above 1770°C,refractoriness under load is 1420-1550°C.
4. Working temperature:1350°C -1650°C.
Feature
1. Good strength at ambient and elevated temperatures.
2. High compressive strength.
3. Low levels of iron and other impurities.
4. Lightweight and energy-efficient.
5. Lower heat storage than denser refractory.
6. Heats to operating temperature fast.
Applications:
1. Furnaces of metallurgy industry, heat treatment furnace
2. Furnaces of chemical industry and construction industry.
3. Furnace of incineration of garbage, recirculating fluidized bed furnace
Standard sizing: 230 x 114 x 65 mm others up to the client
