Product Details:
|
| Al2O3: | ≥48% | SiO2: | ≤45% |
|---|---|---|---|
| Fe2O3: | ≤2% | Apparent Porosity: | ≤24% |
| Bulk Density: | ≥2.15g/cm3 | CCS: | ≥40Mpa |
| Refractoriness: | ≥1790℃ | Refractoriness Under Load: | ≥1430℃ |
Data
| Item | Chemical Composition |
| Al2O3 | ≥48% |
| Fe2O3 | ≤2% |
| SiO2 | ≤45% |
| Bulk density | ≥2.15g/cm3 |
| Apparent porosity | ≤24% |
| CCS | ≥40Mpa |
| Refractoriness | ≥1790℃ |
| Refractoriness under load | ≥1430℃ |
Production process:
The production methods of High Heat Alumina Checker Brick and clay bricks are basically the same.
Only some process parameters are different. There are also processes such as crushing → mixing → molding → drying → firing → inspection → packaging.
The compressive stress is better at low temperature, but slightly reduced at high temperature, so the stack in the kiln is less than 1 meter. The production process of high-alumina refractory bricks and multi-clinker clay bricks is similar.
The difference is that the proportion of clinker in the ingredients is higher, which can be as high as 90%-9%. The clinker needs to be sorted and sieved before crushing. The firing temperature is higher. For example, high-alumina refractory bricks such as Ⅰ and Ⅱ are generally 1500～1600℃ when fired in tunnel kiln.
Production practice proves that high-alumina clinker is strictly selected and classified before crushing, and is stored in tiers. The co-fine grinding method of bauxite clinker and combined clay can improve the quality of high-alumina refractory brick

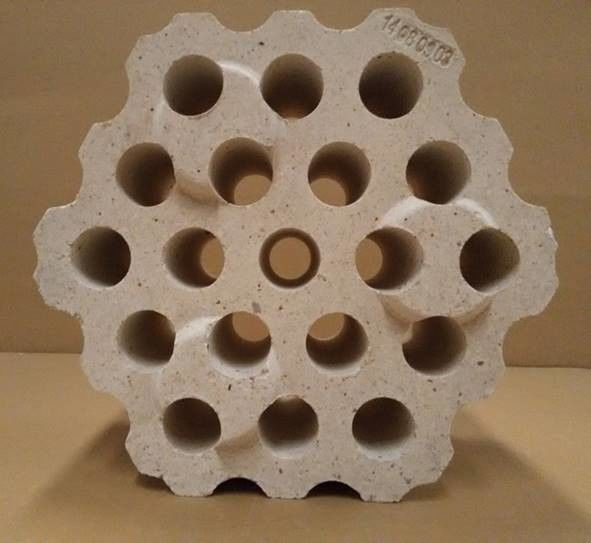

Aluminum oxide (Al2O3) content is higher than 48% High Heat Alumina Checker Brick
A neutral refractory with an alumina content of more than 48%.Made of bauxite or other raw materials of high alumina content after molding and calcining.High thermal stability, refractoriness in 1770℃ above.Good slag resistance, used for lining steelmaking electric furnace, glass furnace, cement converter, etc.
High charge soft, High Heat Alumina Checker Brick is a high grade refractory material made of super grade bauxite, fused corundum and fused mullite.
Feature
1. Better Cold Crushing Strength
2. High Refractoriness Under Load
3. Better Thermal Shock Resistance
4. Low Reheating Linear Rate
Applications:
1. Furnaces of metallurgy industry, heat treatment furnace
2. Furnaces of chemical industry and construction industry.
3. Furnace of incineration of garbage, recirculating fluidized bed furnace
Standard sizing: 230 x 114 x 65 mm others up to the client
