Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick

Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick
Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick

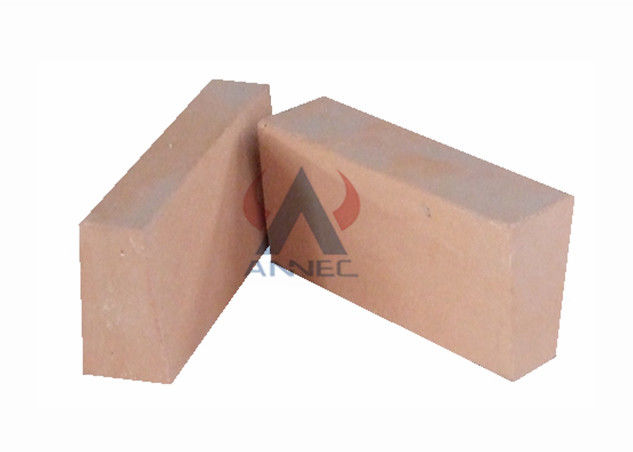

Large Image :  Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick

Product Details:
Place of Origin: China
Brand Name: ANNEC
Certification: ISO
Model Number: JM28
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 1.5/pcs
Packaging Details: Pallet/20GP container
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 8000 pcs/day

Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick

Description
Al2O3: ≥50% Fe2O3: ≤2%
Bulk Density: ≤1.0g/cm3 CCS: ≥5Mpa
PLC At 1350℃: ≤0.8 Material: Alumina Block
High Light:

2 Fe2O3 Insulating Fire Brick

,

1260C Insulating Fire Brick

,

1260C Lime Kiln Insulating Brick

Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick



Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick :

Item JM20 JM23 JM26 JM28 JM30 JM32
USA Brand IFB2000 IFB2300 IFB2600 IFB2800 IFB3000 IFB3200
Classification Temperature (ºC) 1000 1260 1430 1540 1650 1760
Bulk Density (g/cm3) 0.52 0.55-0.60 0.78 0.88 1.03 1.25
Cold Crushing Strength (Mpa) 0.8 1.2 1.6 2.1 2.5 3.5
Modulus of Rupture (Mpa) 0.6 0.9 1.4 1.6 2.1 2.1
Reheating Linear Change (%) CT-30 ºCX 8H 1065 ºC
0
1230ºC
0
1400ºC -0.5 1510ºC -0.8 1620ºC -0.9 1730ºC
-0.9
Thermal conductivity(W/m.k) 400ºC 0.17 0.17 0.24 0.30 0.40 0.49
600ºC 0.19 0.19 0.27 0.32 0.42 0.50
800ºC 0.22 0.22 0.30 0.35 0.44 0.51
1000ºC 0.24 0.25 0.32 0.38 0.45 0.53
Al2O3 (%) 45 37 54 64 72 77
Fe2O3 (%) 0.9 1.0 0.9 0.8 0.7 0.5
SiO2 (%) 50 50 42 32 26 22





Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick is a kind of quality refractory insulation materials for resisting high temperature with features of light weight, low thermal conductivity, thermal insulation and high compression strength in the high temperature furnaces or kilns. lightweight bricks are mainly used for the top of hot blast stove, stack and bottom of blast furnace, regenerative chamber of glass melting furnace, lining of ceramic high temperature furnace and so on.



Features:


1. High porosity


2. Small bulk density


3. Low thermal conductivity


4. Small heat capacity


5. Good thermal insulation


6. Lightweight



Compared with dense refractory bricks, JM 30 Mullite Insulation Standard Brick have the following advantages:


(1) With low heat storage and high thermal efficiency, it can speed up the turnover of intermittent operation kilns, improve production efficiency, reduce fuel consumption and save energy.


(2) Low thermal conductivity, which can reduce the thickness of the furnace wall and roof, reduce the quality of the furnace body, and simplify the structure of the furnace.


(3) The furnace temperature can become uniform. Conducive to improving product quality.


(4) The temperature outside the furnace is low, which is convenient for operation, improves labor efficiency, and improves labor conditions for kiln installation and discharge.





Application:

• Industrial furnace, glass furnace
• Chemical industrial furnace
• Utility industry furnace lining
• Heat insulation ventilation wall

Anti Corrosion Lime Kiln 1260C 2 Fe2O3 Insulating Fire Brick/High Alumina Insulating Brick 0
