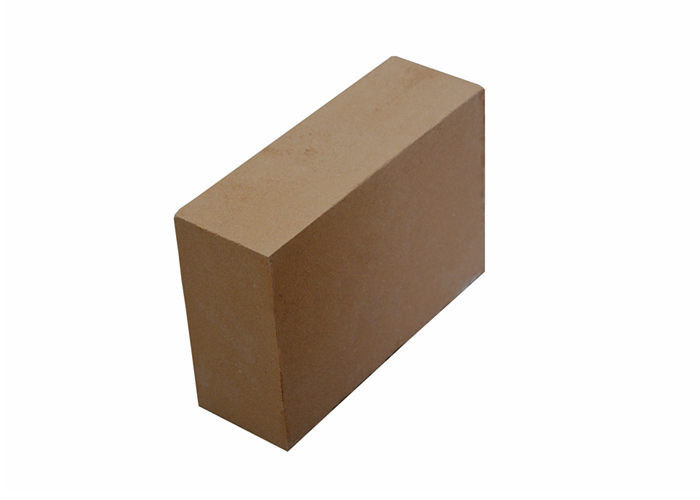

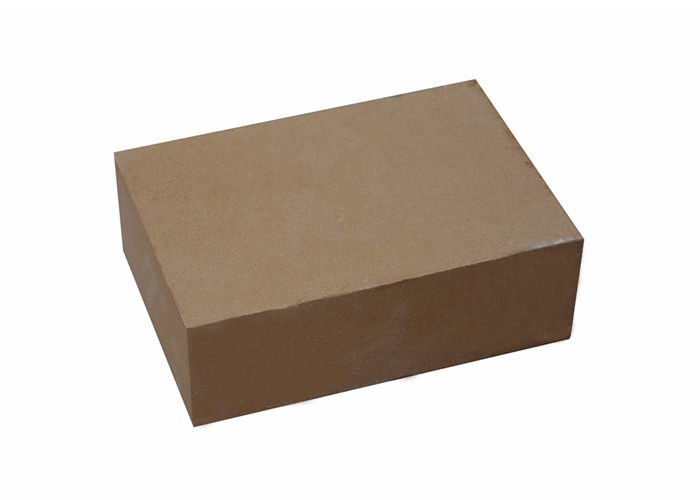

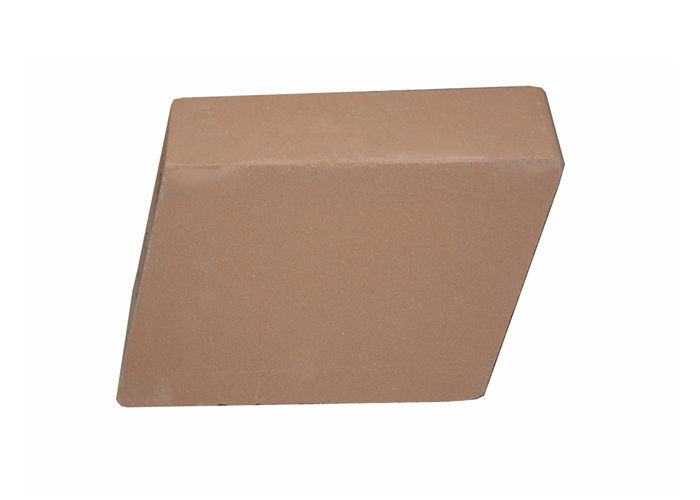

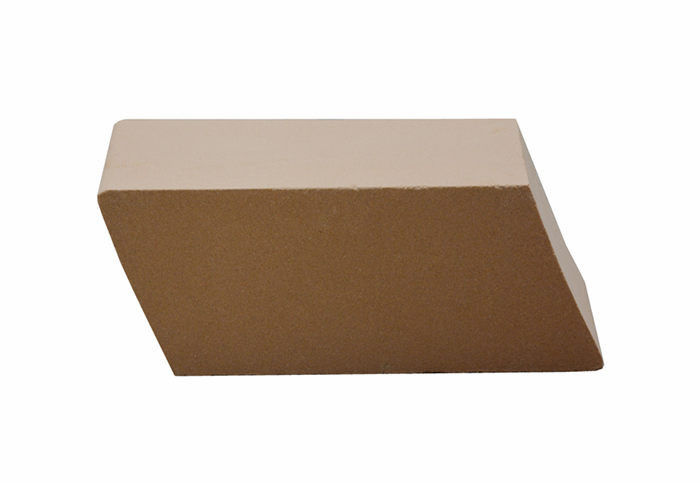

0.55 W/mK Clay Insulating Brick

0.55 W/mK Clay Insulating Brick
0.55 W/mK Clay Insulating Brick 0.55 W/mK Clay Insulating Brick 0.55 W/mK Clay Insulating Brick 0.55 W/mK Clay Insulating Brick

Large Image :  0.55 W/mK Clay Insulating Brick

Product Details:
Place of Origin: China
Brand Name: Annec
Model Number: NG135-1.2
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Price: 200-441 USD/T
Packaging Details: 12-24 pallets for one 20 GP container
Delivery Time: 50-120 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 Tons/ per month

0.55 W/mK Clay Insulating Brick

Description
Bulk Density: ≤1.2 G/cm3 Cold Crushing Strength: ≥4.5 MPa
Linear Change On Reheating,(5h,≤2%): ≥1350 ℃ Thermal Conductivity(350±25)℃: ≤0.5 W/m·K
Characteristic 1: Light Weight Characteristic 2: Low Thermal Conductivity
High Light:

0.55 W/mK Clay Insulating Brick

,

0.50 W/mK Clay Insulating Brick

,

0.55 W/mK Insulating Clay Brick

  Standard sizing:This brick is special size for pipes of industry furance ,Special size and OEM Service also provide!
    The size is precise, providing kinds of shapes according to customer's drawing



Definition:

    Light Weight Fire Clay Brick​ generally refer to refractory bricks with a density less than 1.3 g/cm3. Due to the characteristics of low density, high porosity, small thermal conductivity, good thermal insulation and certain compressive strength, light-weight refractory bricks have been widely used in heat treatment equipment.



    The materials of ordinary light-weight heat-resistant refractory bricks are clay, high-alumina high-strength floating bead bricks, low-iron mullite, high-aluminum poly light-insulating refractory bricks, and diatomaceous earth heat-resistant refractory bricks.


    For strength products, high-quality plate-like corundum and mullite are used as aggregates, sillimanite composite is used as a matrix, special additives and a small amount of rare earth oxides are mixed, and then subjected to high-pressure molding and high-temperature firing.



Lightweight refractory bricks Advantage:



    (1)  Light weight: using this product in construction can reduce the weight of the building and greatly reduce the comprehensive cost of the building.
    (2)  Insulation and heat insulation: During the manufacturing process of aerated concrete, tiny pores are formed inside, and these pores form an air layer in the material, which greatly improves the effect of thermal insulation
    (3)  Sound absorption and sound insulation: good sound absorption and sound insulation performance can create high airtight indoor space for you. Provide you with a quiet and comfortable environment.
    (4)  Small shrinkage value: The excellent material with a small shrinkage value ensures that your wall will not crack.
    (5)  Impermeability: The pore structure of this product makes the capillary action poor, and the water absorption and moisture conduction are slow. The time required for the same volume of water absorption to saturation is 5 times that of clay bricks.
    (6)  Environmental protection: no pollution during manufacturing, transportation and use, protect cultivated land, save energy and reduce consumption, and belong to green environmental protection building materials.



Application:

    Light Weight Fire Clay Brick​ ​​ ​is mainly used for the partition of coking chamber and combustor of coke making furnace, regenerator chamber and cinder chamber of steelmaking open hearth furnace, soaking pit, refractory material of glass melting furnace and sintering furnace of ceramics and other kiln vault and other load-bearing parts.

It is also used for high temperature load bearing parts of hot blast furnace and acid open hearth furnace top.



Product Description:







Light Weight Fire Clay Brick​

Item

NG135-1.3

NG135.1.2

NG135-1.1

NG130-1.0

Bulk Density ( g/cm3)

≤1.3

≤1.2

≤1.1

≤1.0

Cold Crushing Strength (MPa)

≥5.0

≥4.5

≥4.0

≥3.5

Linear Change on Reheating(5h,≤2%)

≥1350

≥1350

≥1350

≥1350

Thermal conductivity(350±25)℃ (W/mK)

≤0.55

≤0.50

≤0.45

≤0.40






Why choose us

Q: Are you trading company or manufacturer?

A: We are Manufacturer of refractory materials that have 4 plants in China; So we can provide you with high quality products at more competitive prices. we can provide you professional solutions about your problems. Although our salesman cannot reply you immediately, pls leave your email or phone number, we can let our technician directly help you ASAP.



Q: Do you accept OEM?

A: Sure, we can do OEM for much kind of brick.



Q: What information do we need to provide?

A: If you are clear about the products you purchased, please send us the brick drawings, index(include chemical and physical indicators )and order quantity.

If you are not familiar with it, please tell us the usage and working temperature, we will recommend the product to you.



Q: How long is delivery time?

A: The delivery time will be determined according to the quantity of the order. Our monthly output is 12000tons. We have good connection with shipping company, agency, as well as the local custom and port authority. making sure we deliver on time.



Q: When can I get the price?

A: We usually quote within 24 hours after getting your detailed requirements, like size, quantity etc. If it is an urgent order, you can call us directly.



Q:What is the HS code?

A:The HS code is 69022000.



Q:Is there any cost for the sample?

A: We provide free sample(Less 3 pcs) but don't bear the freight.



Q: What is the Warranty for the fire brick?

A: For all the brick, we have 1 years warranty. If any quality problems on our side occurred in this period, we will take on the shipping cost and replacement.
