MgO C Steel Making Refractories

MgO C Steel Making Refractories
MgO C Steel Making Refractories MgO C Steel Making Refractories MgO C Steel Making Refractories

Large Image :  MgO C Steel Making Refractories

Product Details:
Place of Origin: China
Brand Name: Annec
Payment & Shipping Terms:
Minimum Order Quantity: 5 Tons
Price: 400-2100 USD/T
Packaging Details: 12-24 pallets for one 20 GP container
Delivery Time: 50-120 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 Tons/per tons

MgO C Steel Making Refractories

Description
Al2O3(%) ≥: 62 MgO(%) ≥: 11
C(%) ≥: 6 Refractoriess Under Load ℃ ≥: 1570
Refractoriness℃ ≥: 1690 Cold Crushing Strength(MPa)≥: 30
Apparent Porosity(%) ≤: 7 Bulk Density(g/cm3)≥: 2.77
High Light:

MgO C Steel Making Refractories

,

OEM Magnesium-carbon bricks

,

1570C Steel Making Refractories

Item MT-1 MT-2 MT-3 MT-4 MT-5 MT-6
Al2O3(%) ≥ 62 64 66 65 62 65
MgO(%) ≥ 11 12 10 13 12 10
C(%) ≥ 6 7 8 7 5 10
Refractoriess under load ℃ ≥ 1570 1650 1570 1480 1690 1700
Refractoriness℃ ≥ 1690 1730 1750 1790 1790 1790
Cold Crushing Strength(MPa)≥ 30 40 46 55 78 88
Apparent Porosity(%) ≤ 7 5.75 9 12 8 7.5
Bulk Density(g/cm3)≥ 2.77 2.9 2.7 2.7 2.9 2.95

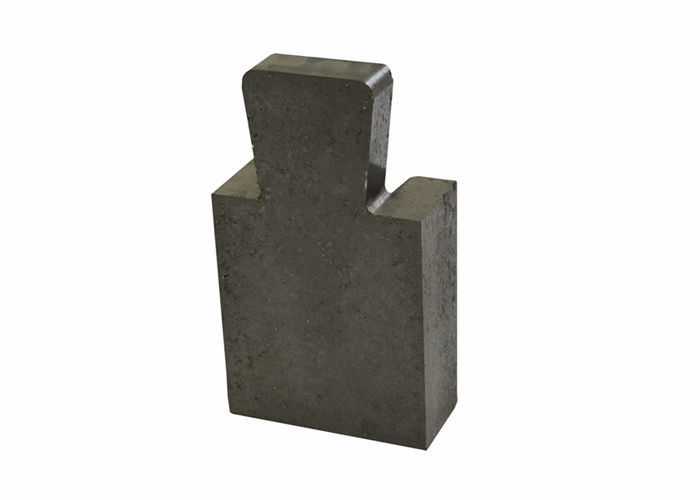

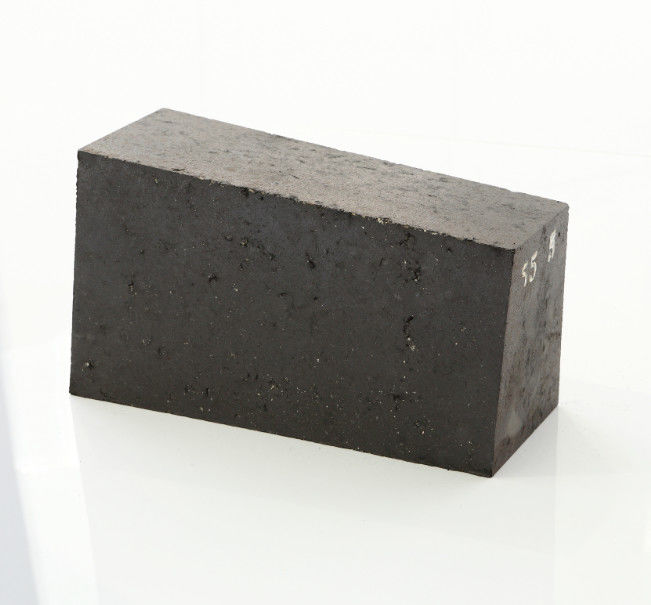

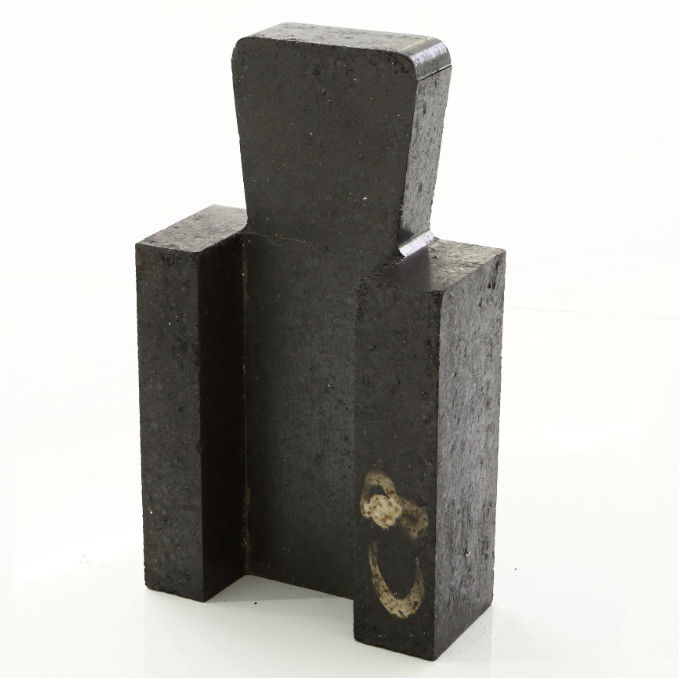

Magnesium-carbon bricks are made of high-melting alkaline oxide magnesium oxide (melting point 2800℃) and high-melting carbon materials that are difficult to be infiltrated by slag, and various non-oxide additives are added. A non-burning carbon composite refractory material combined with a carbon binder. Magnesia carbon bricks are mainly used for lining of converters, AC electric arc furnaces, DC electric arc furnaces, and slag lines of ladle.
As a composite refractory material, magnesia carbon bricks effectively utilize the strong slag erosion resistance of magnesia and the high thermal conductivity and low expansion of carbon, which compensates for the biggest disadvantage of poor spalling resistance of magnesia





Advantage:



1. Good high temperature resistance
2. Strong resistance to slag
3. Good thermal shock resistance
4. Low high temperature creep



Application:

The refractory materials used in the early ladle slag line were directly combined with magnesia-chrome bricks, and fused and combined with high-quality alkaline bricks such as magnesia-chrome bricks. After the successful use of MgO-C bricks in the converter, the refining ladle slag line also began to use MgO-C bricks, and achieved good results. China and Japan generally use resin-bonded MgO-C bricks with a carbon content of 12% to 20%, while Europe mostly uses pitch-bonded MgO-C bricks with a carbon content of about 10%.

Packaging and shipping

Standard packing: waterproof inner packing + outer packing suitable for container transportation
